Chris' Built A20 Setup (Going to be boosted)



Update: The car finally runs, really really rough and rich, but hopefully I can tune it to the point where its livable. :-)

Story:

I have been planning to build an A20 for a few years now, and with the age and condition of my current motor, it was finally time. The motor is fully build and ready for turbo, but because I am a broke bastard, its going to stay NA for at least a year.

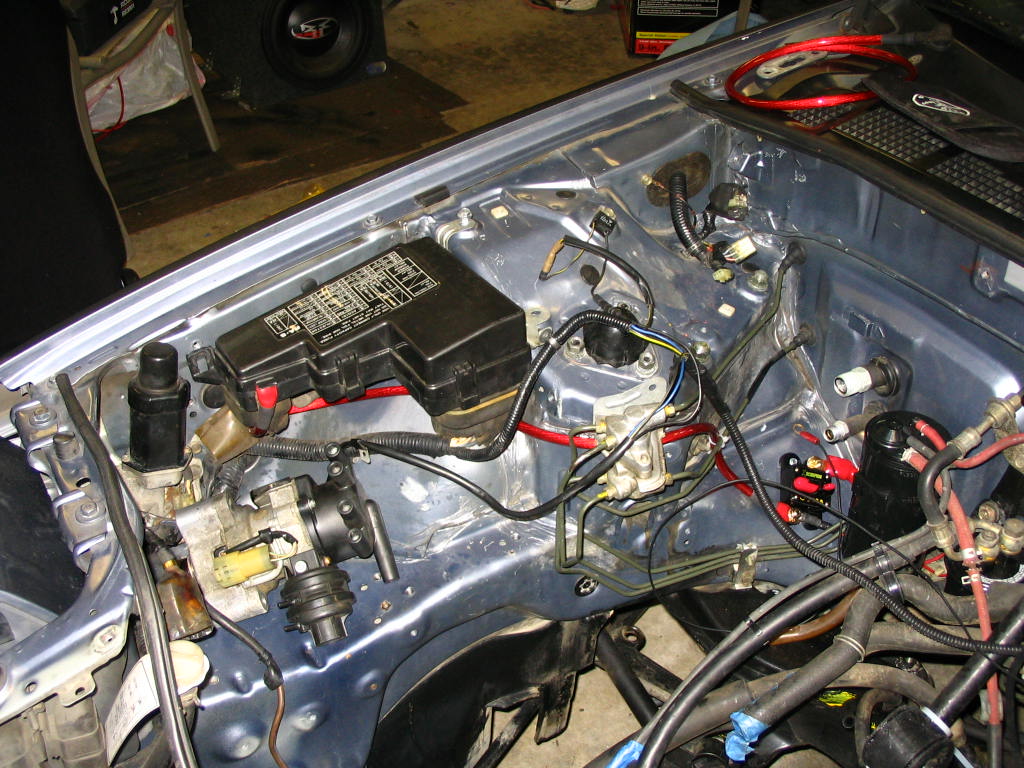

I am currently getting the car ready to do the swap, and when I get the motor in, it's time for a quick break in, and then I'm off to the dyno and the track (when they open). The tenative goal for the car, in NA form is about 160-165 whp, and high 14 second quarter miles, with good tires. Read about the rest of my car (coming soon).

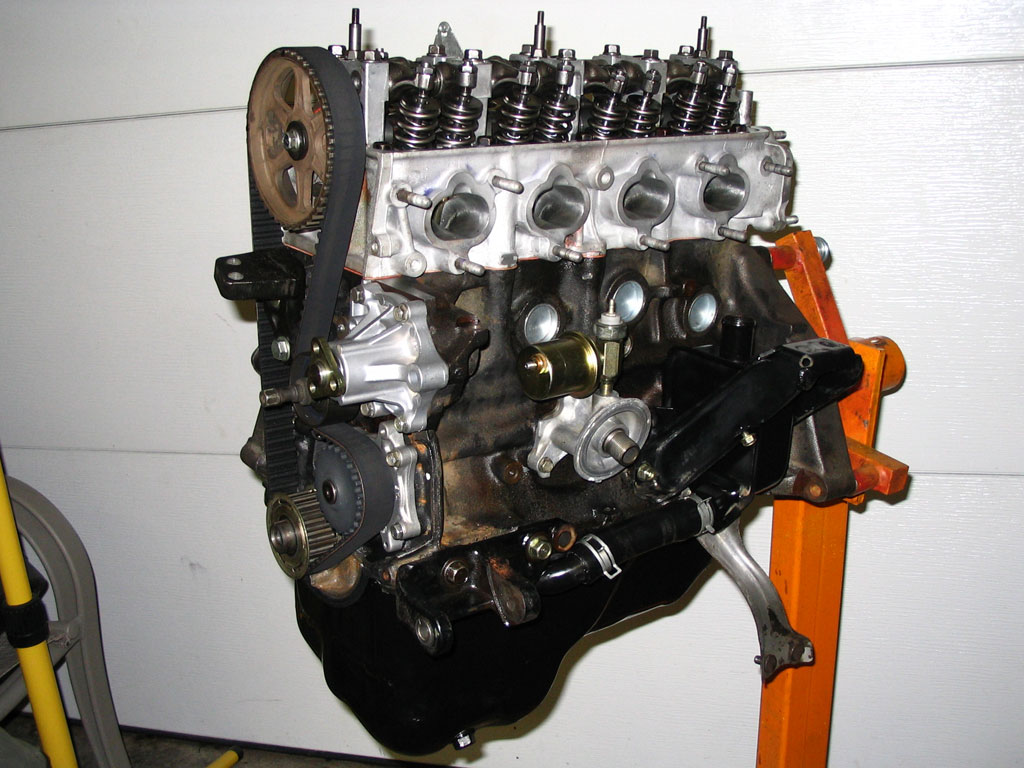

Block:

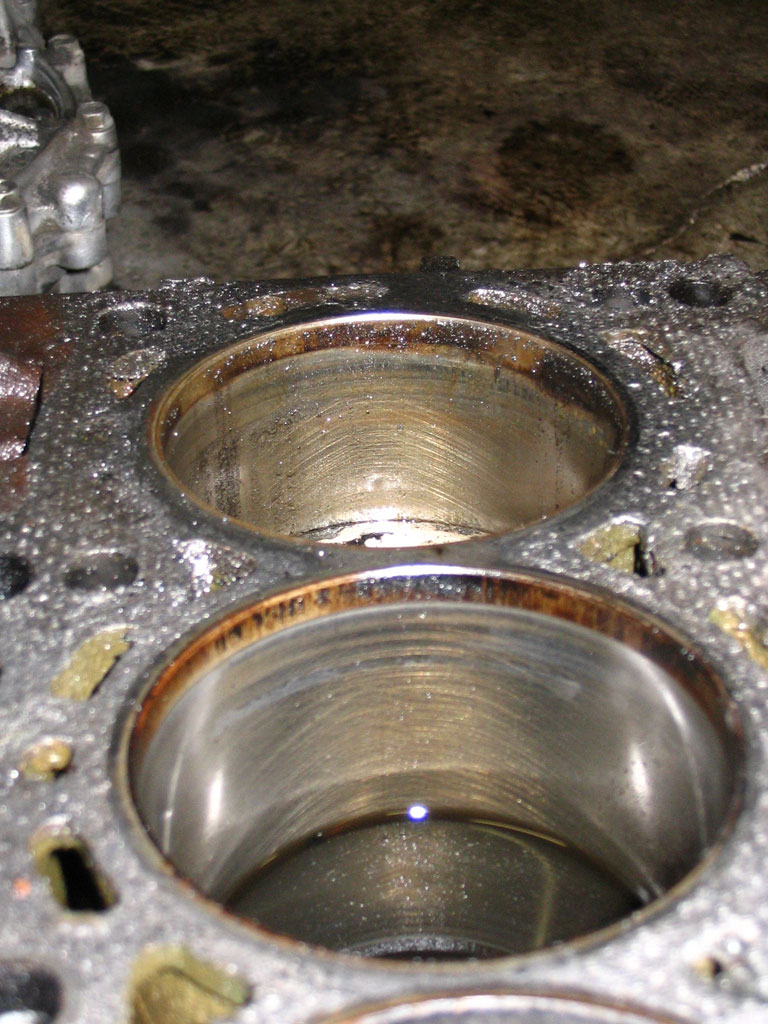

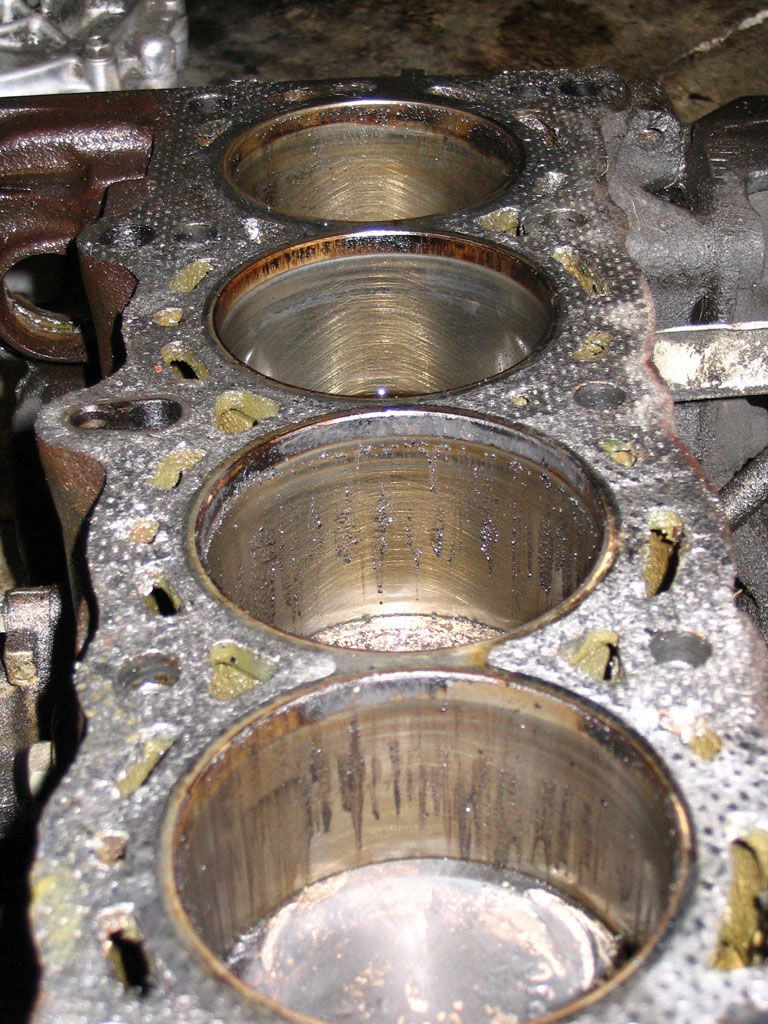

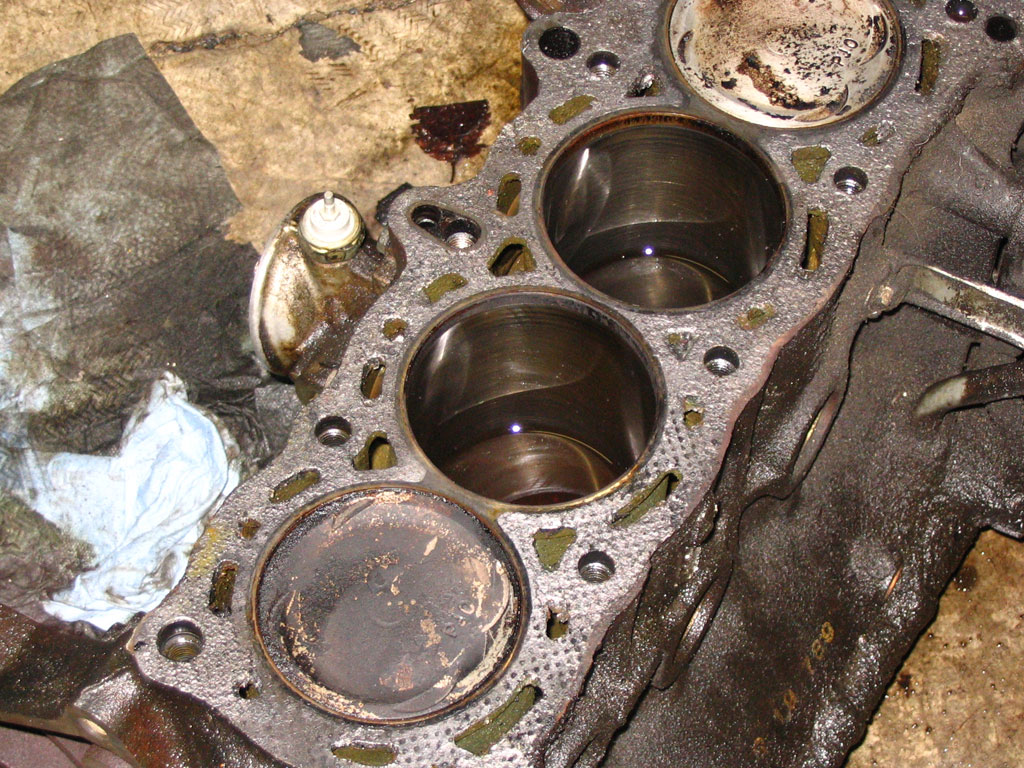

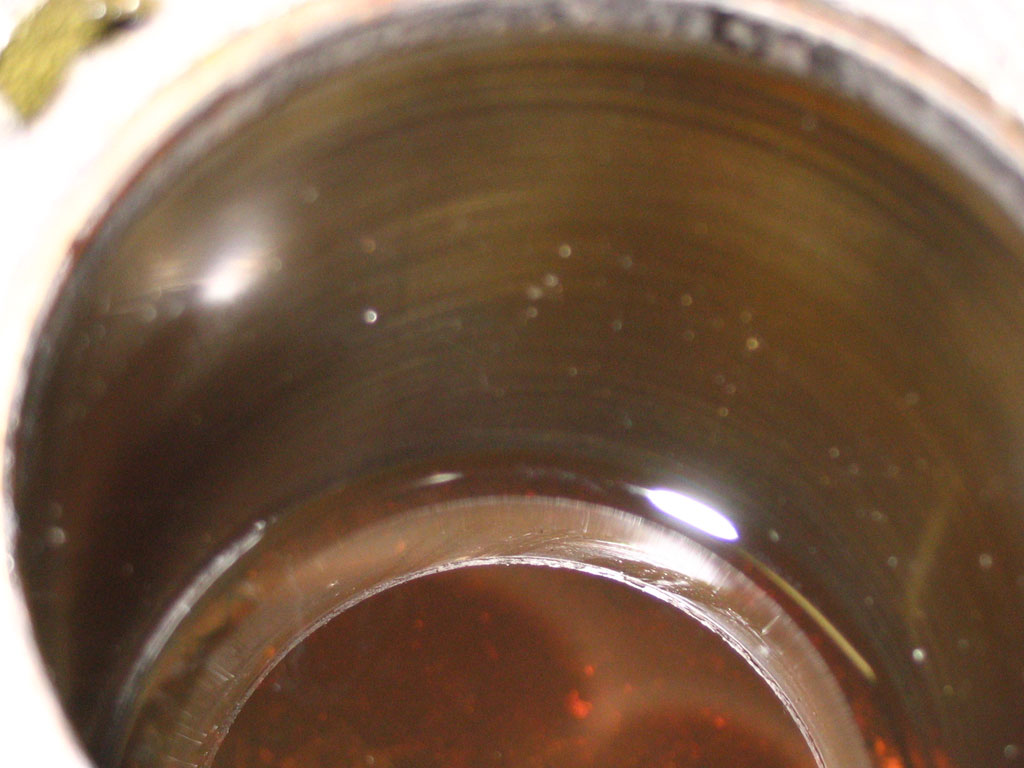

  • Bored .050

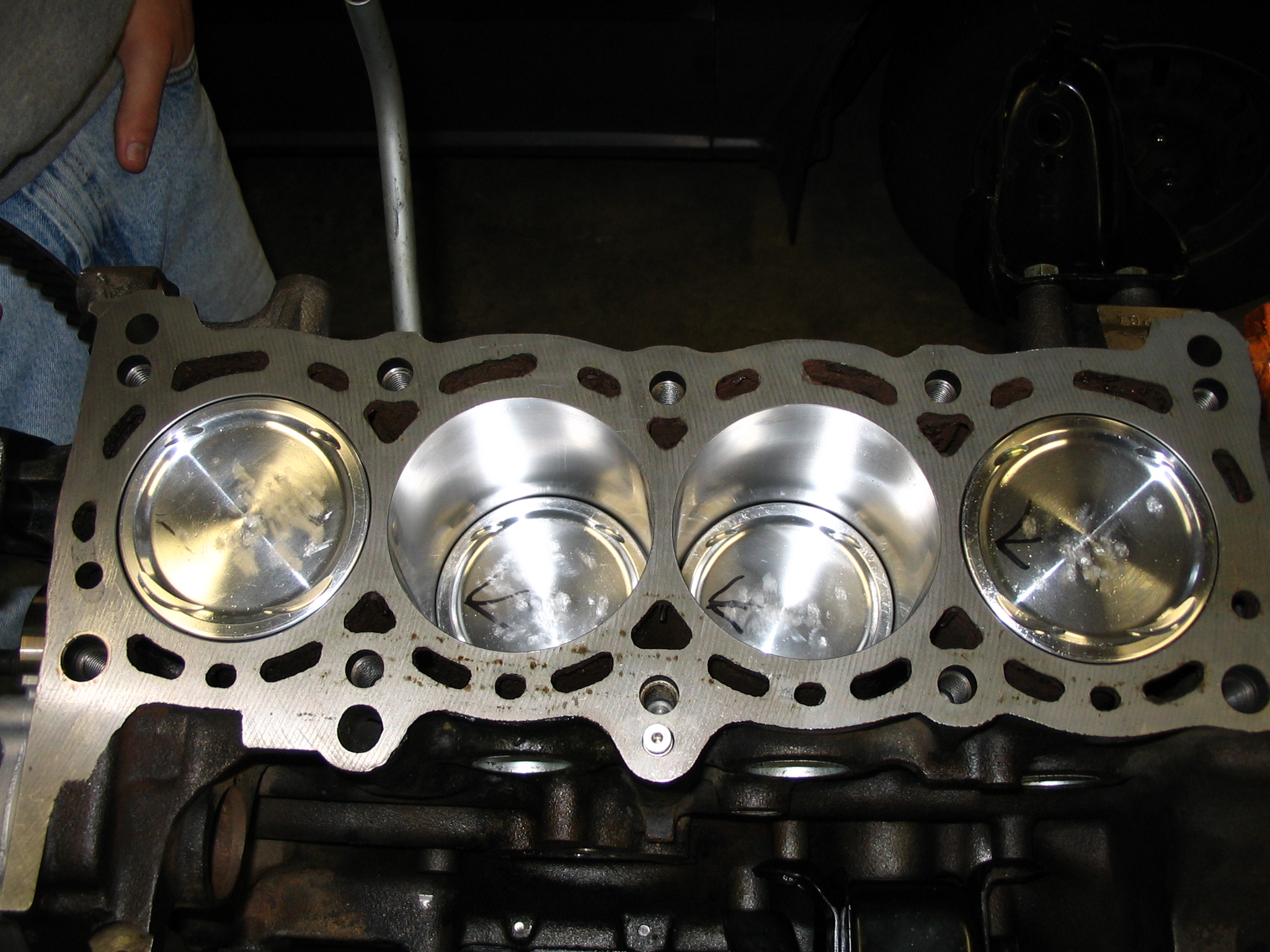

  • Diamond Custom pistons 8.46:1 CR and Total Seal ring set with chrome steel top rings
  • Eagle H-Beam Rods (from LS Integra)
  • ARP rod bolts, and main studs
  • Baffled oil pan (modified to keep oil in the bottom)
  • High flow Toga oil pump
  • King tri-metal bearings all around
  • Balanced bottom end (from crank pully to clutch - to 8000RPM safe)

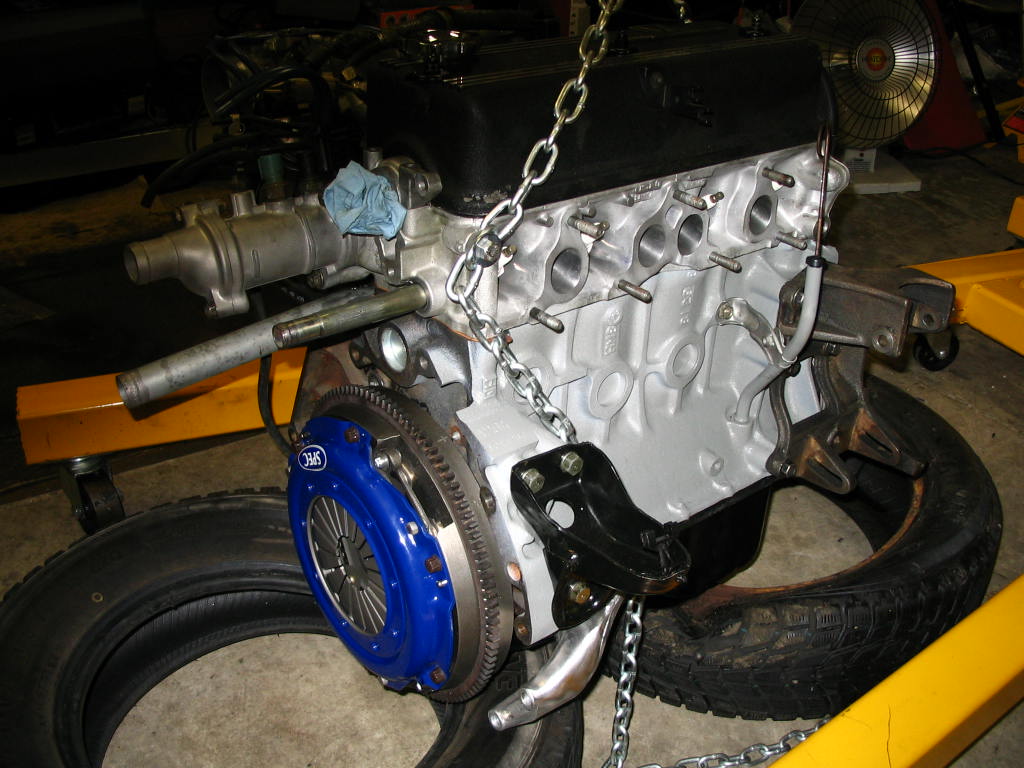

  • Lightened OEM flywheel (16.5 lbs)

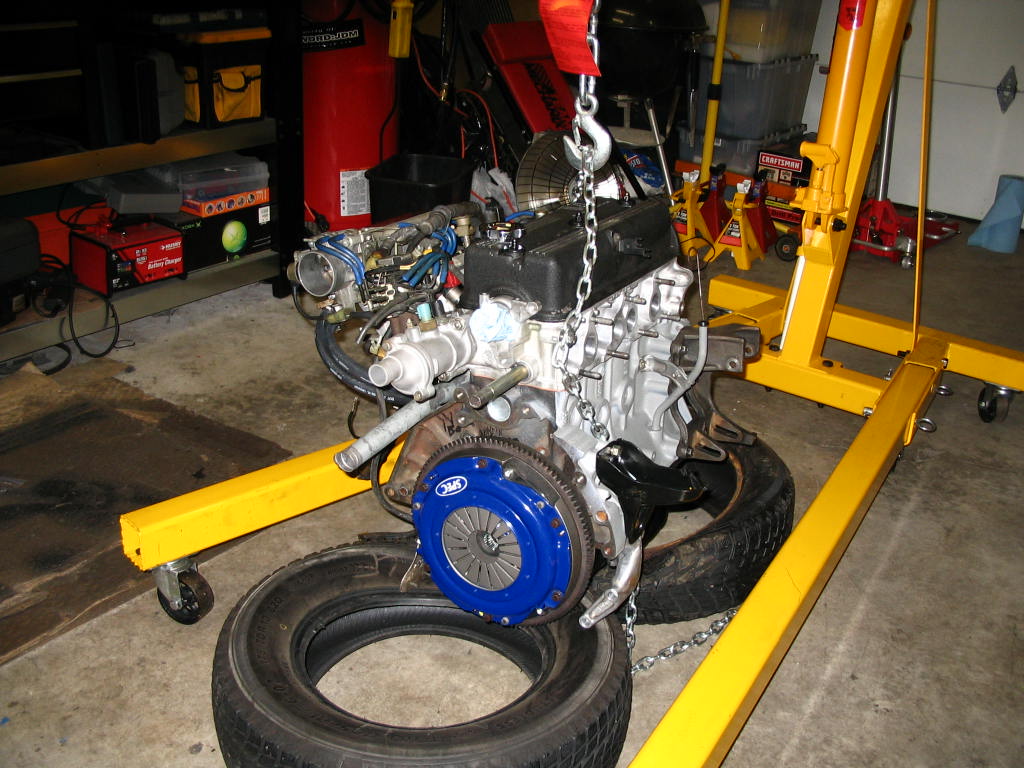

  • Spec Stage 3 Clutch (6 puck, sprung, 259 ft/lbs)

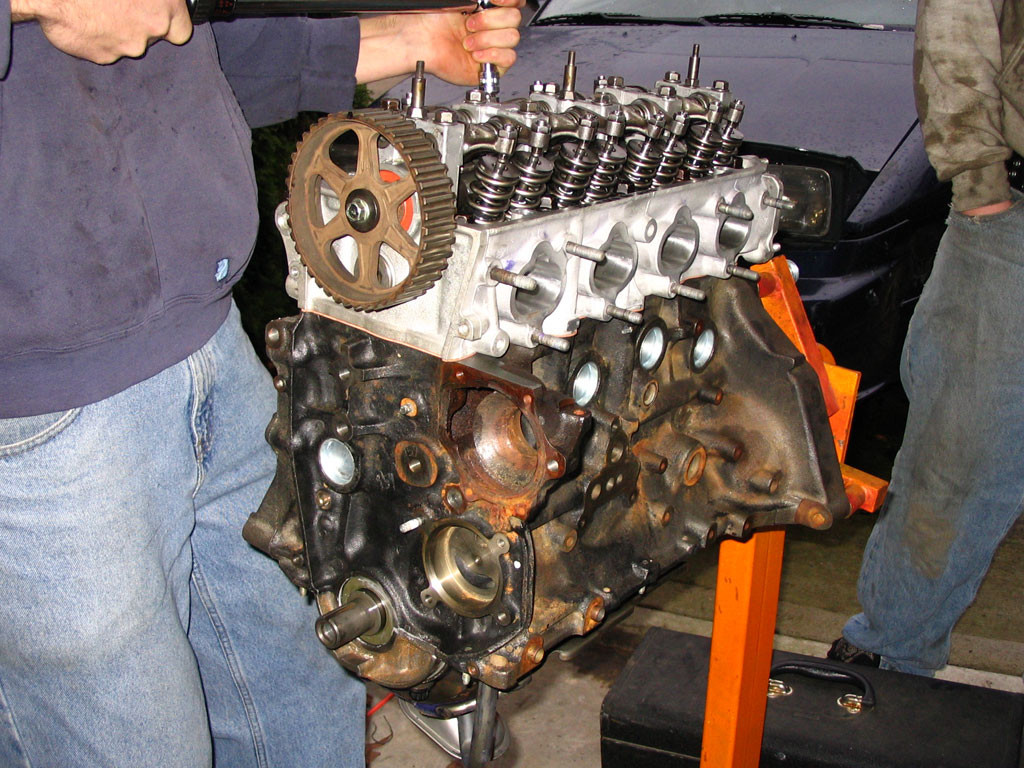

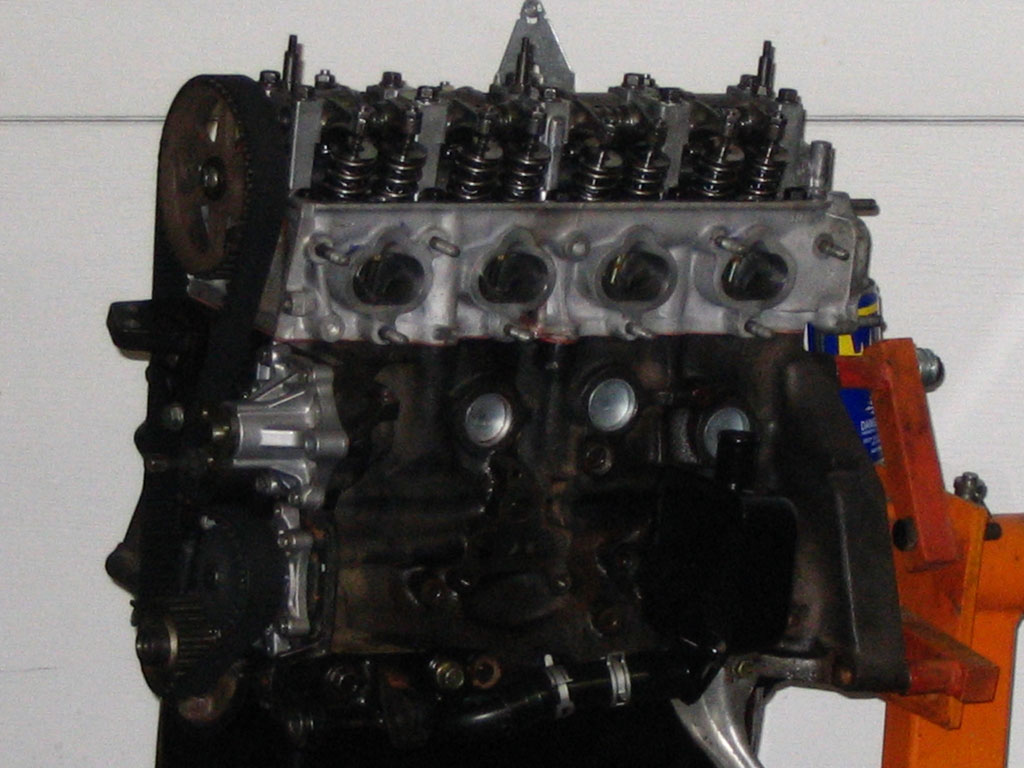

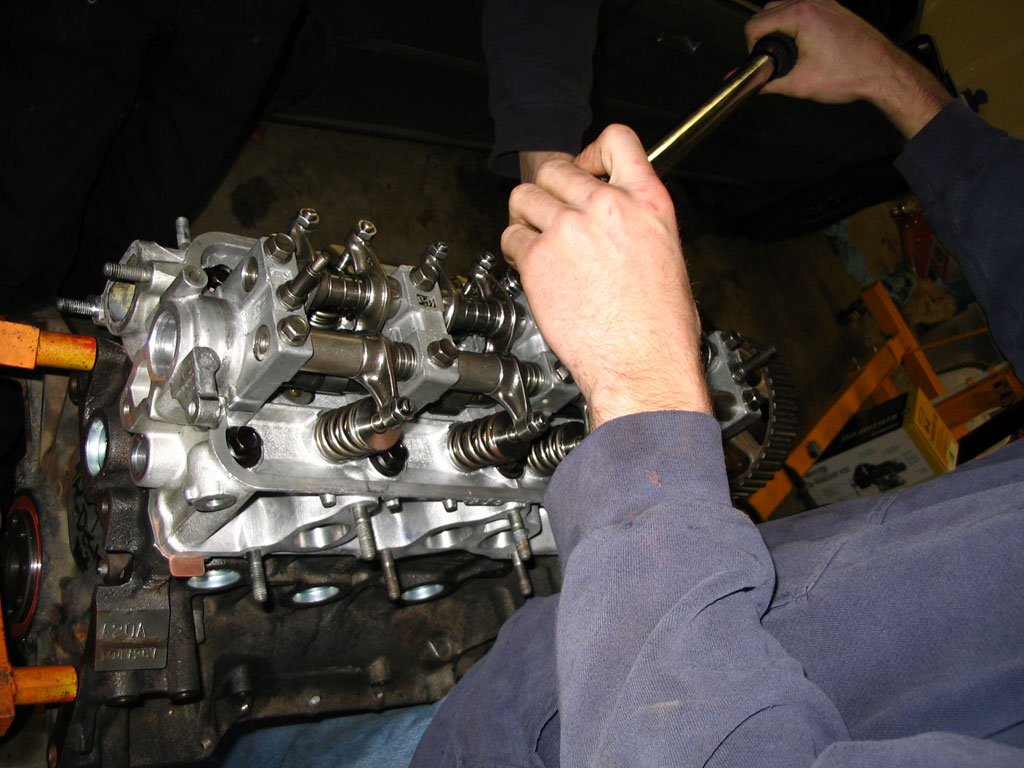

Head:

  • 70mm > 68mm tapered BBK throttle body
  • AEBS B16 intake manifold (bored from 65mm to 68mm to mate to TB)

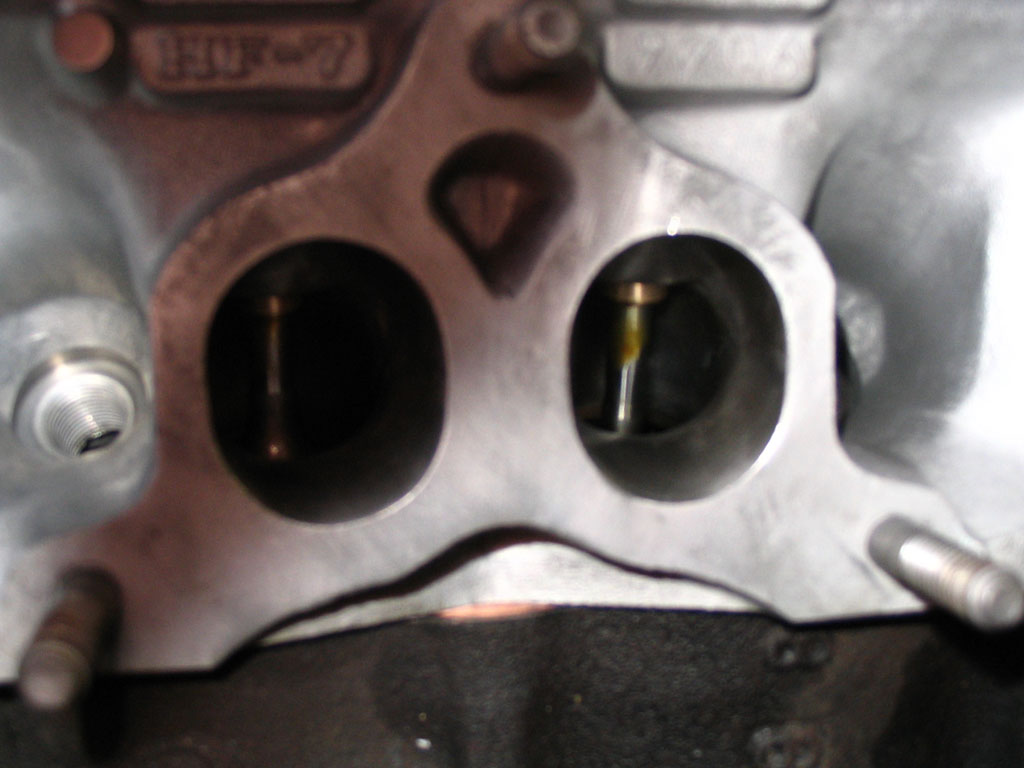

  • Ported head to intake manifold

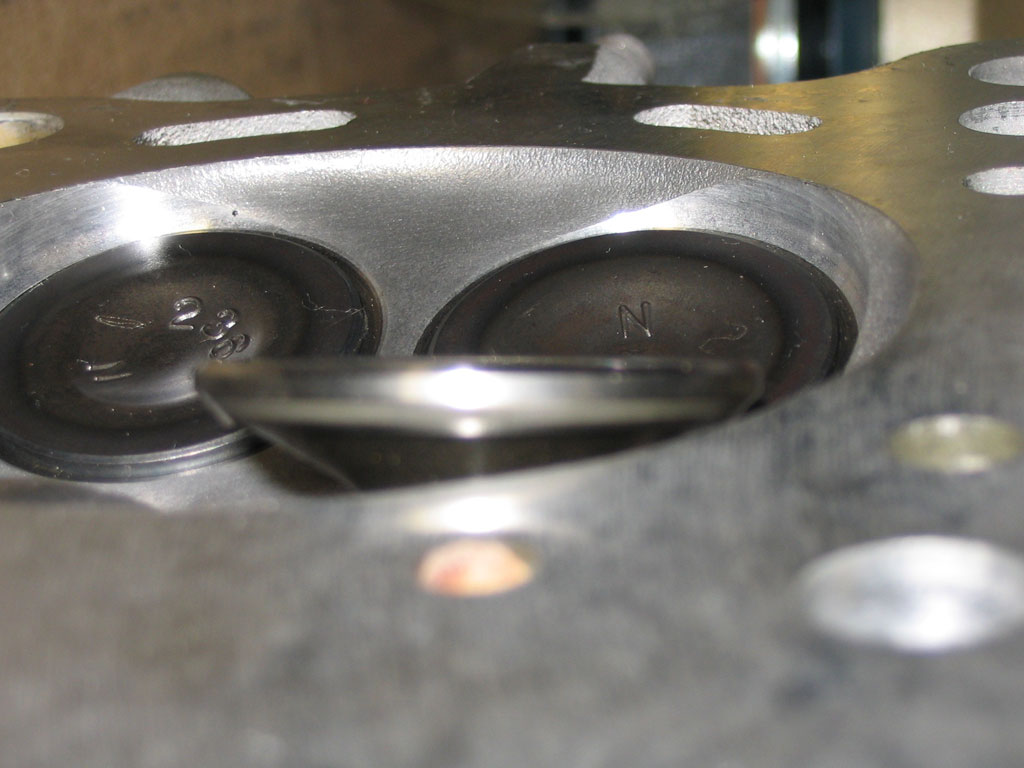

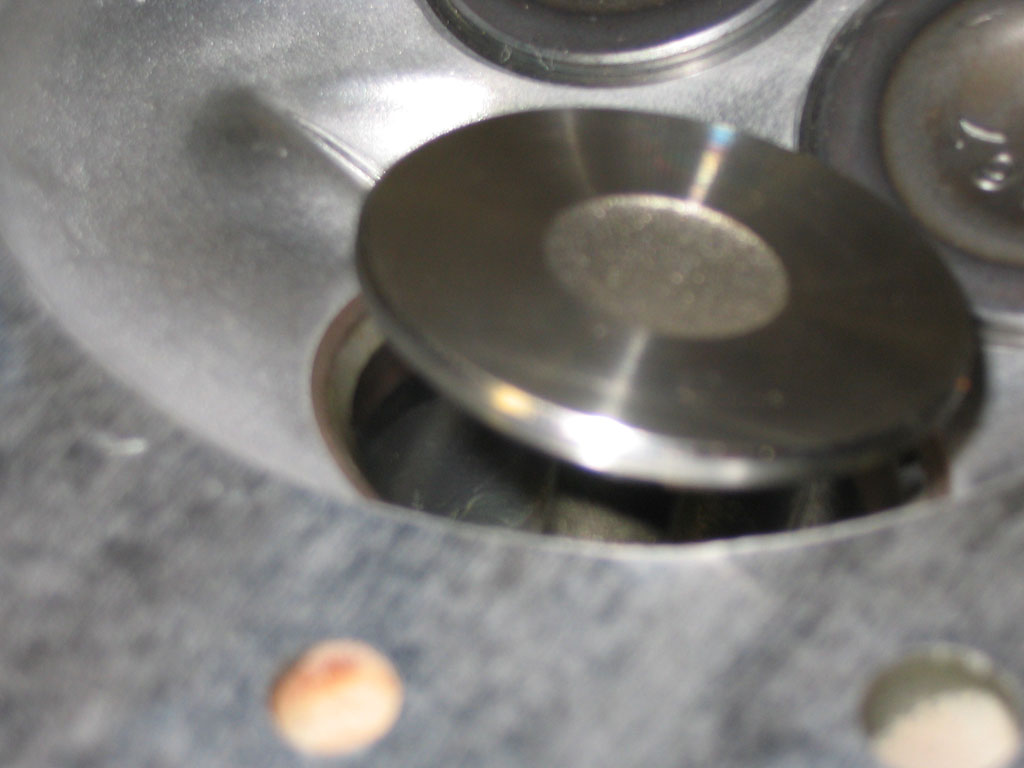

  • OEM sized forged valves
  • Titanium valve retainers
  • Titanium locks

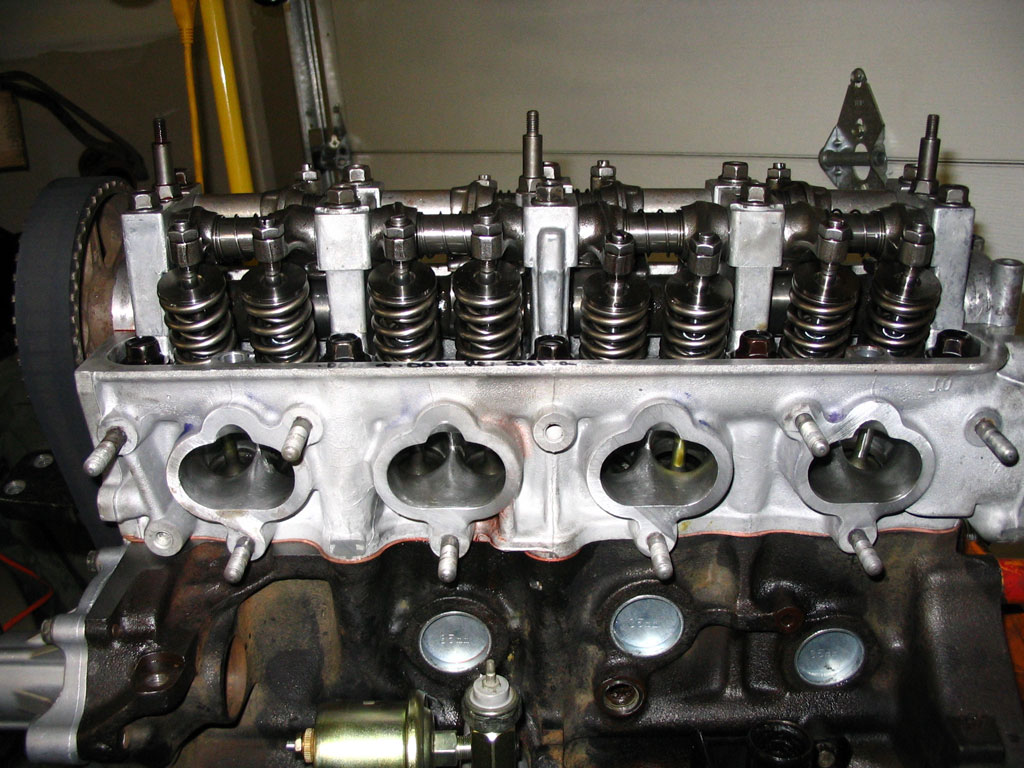

  • High compression valve springs (8500 rpm capable)

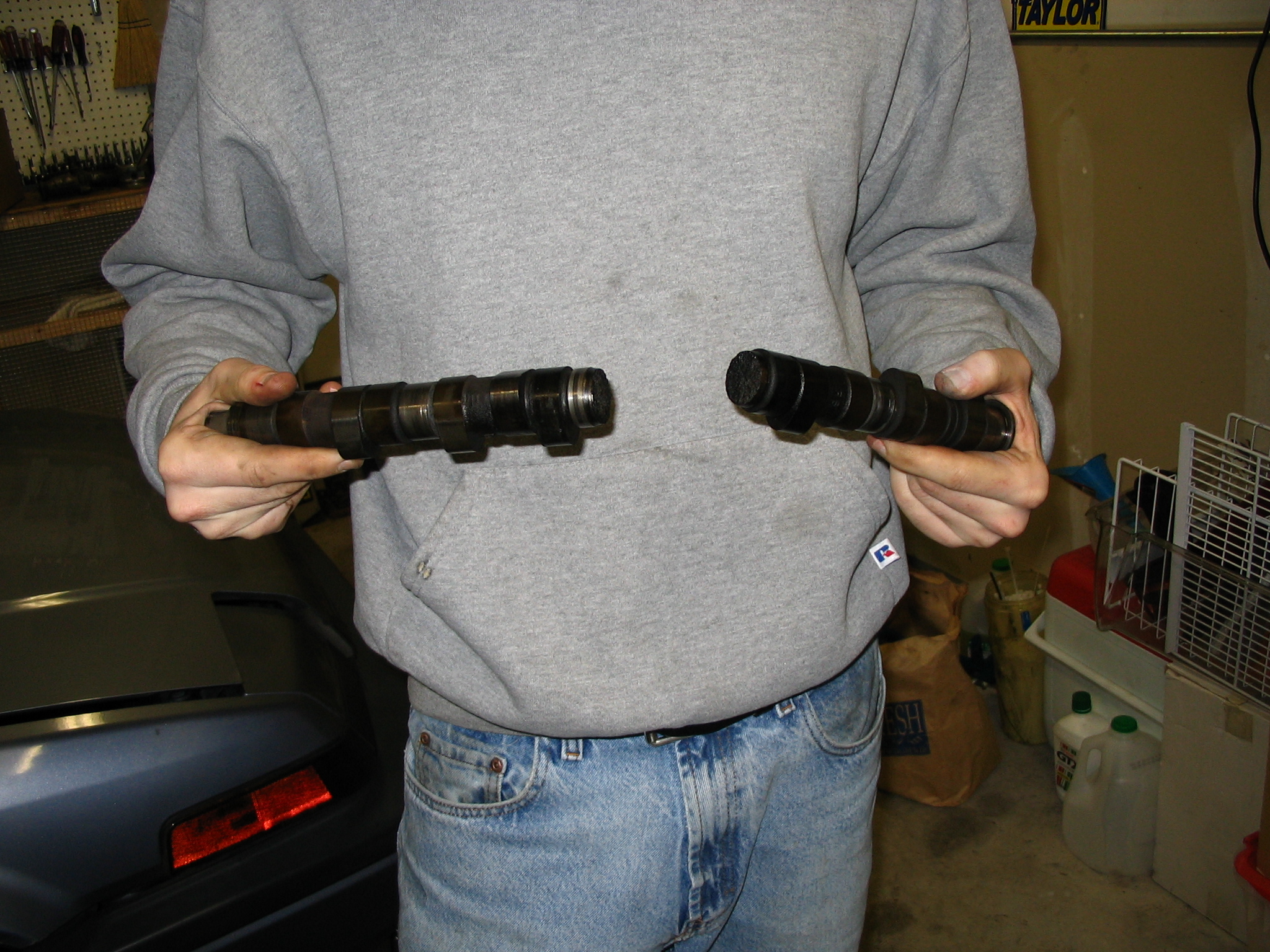

  • Delta 282 Cam

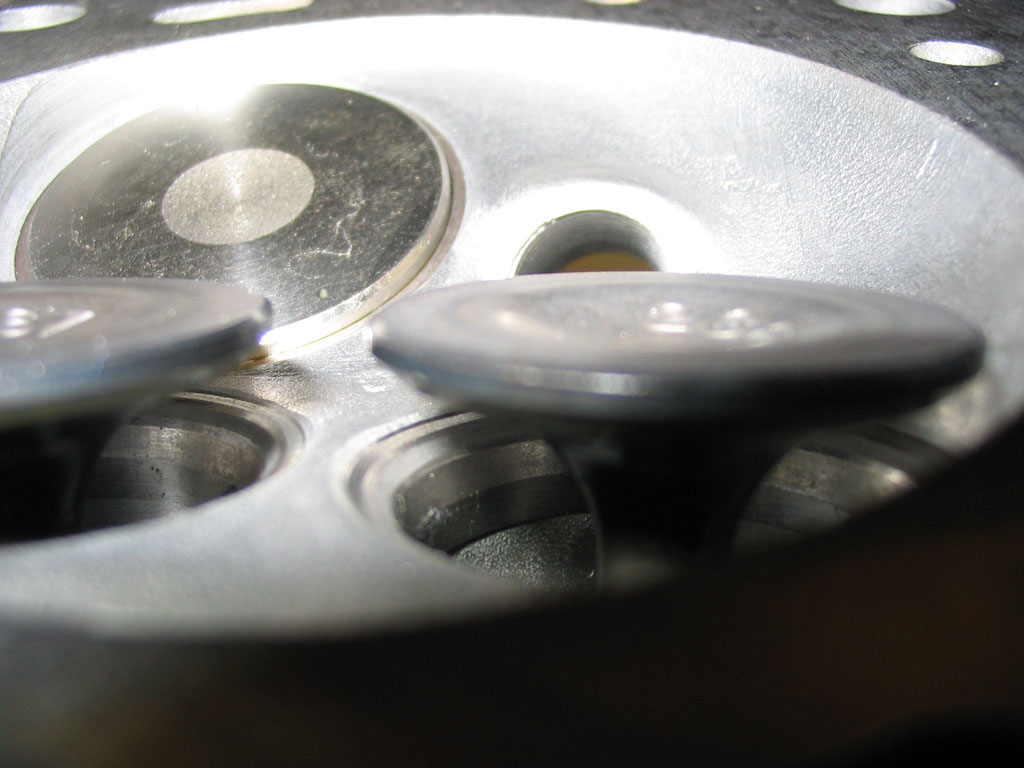

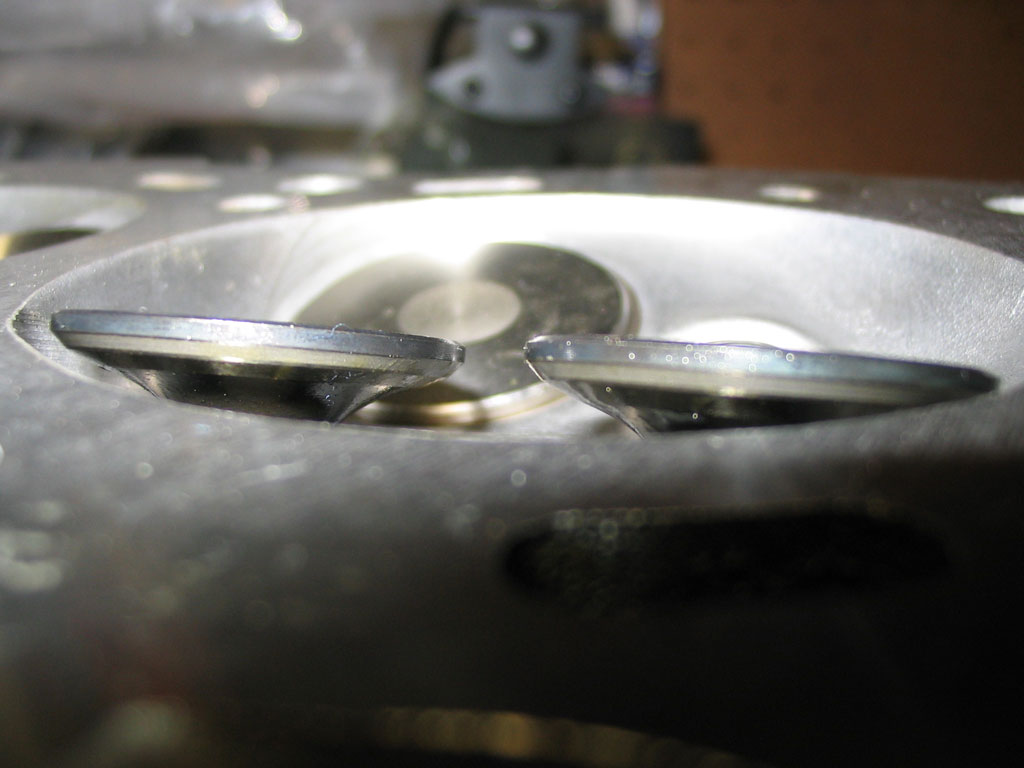

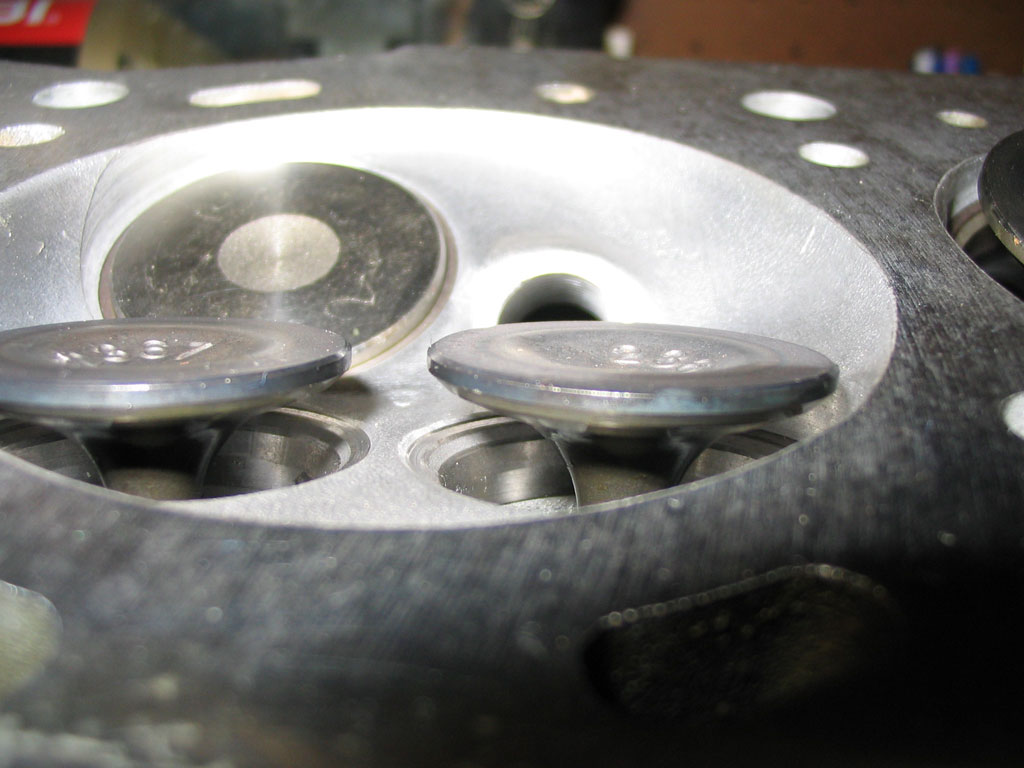

  • 5-angle valve grind

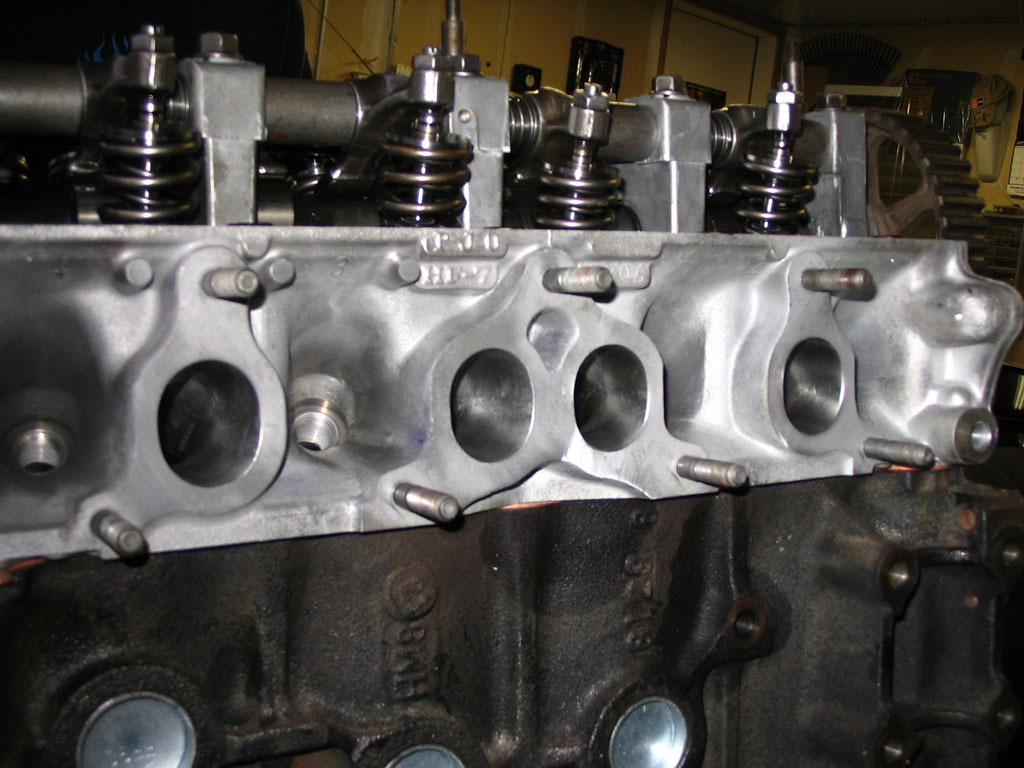

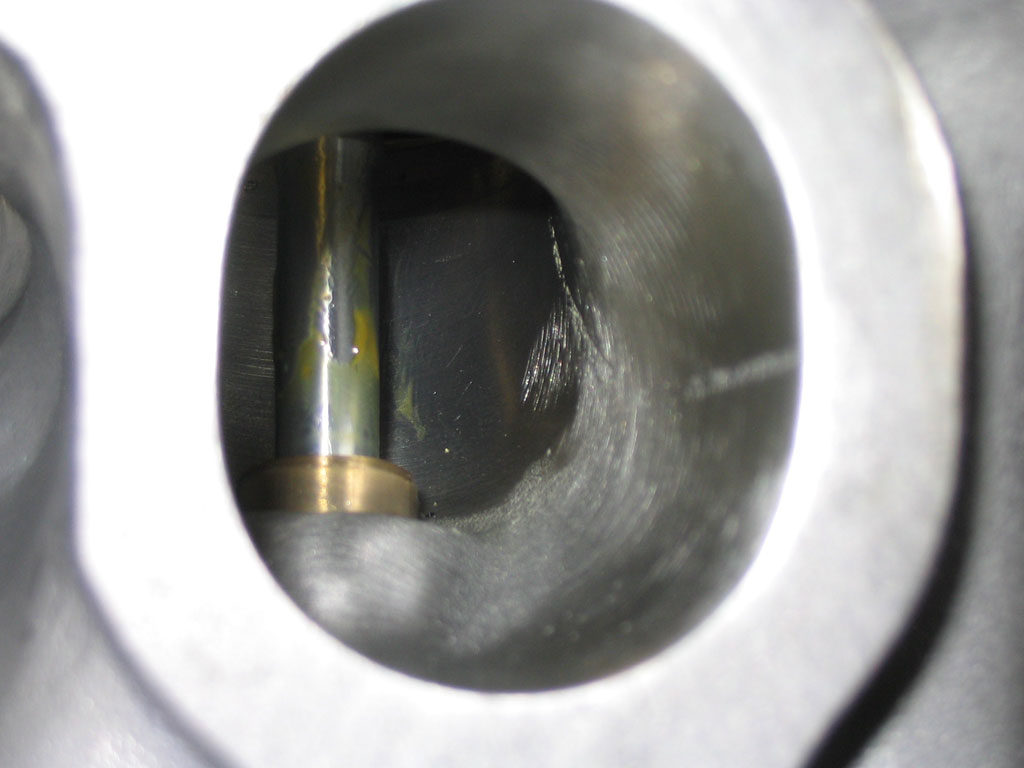

  • Ported and polished head
  • Polished exhaust ports
  • DC Sports header (for now, until I'm boosted)

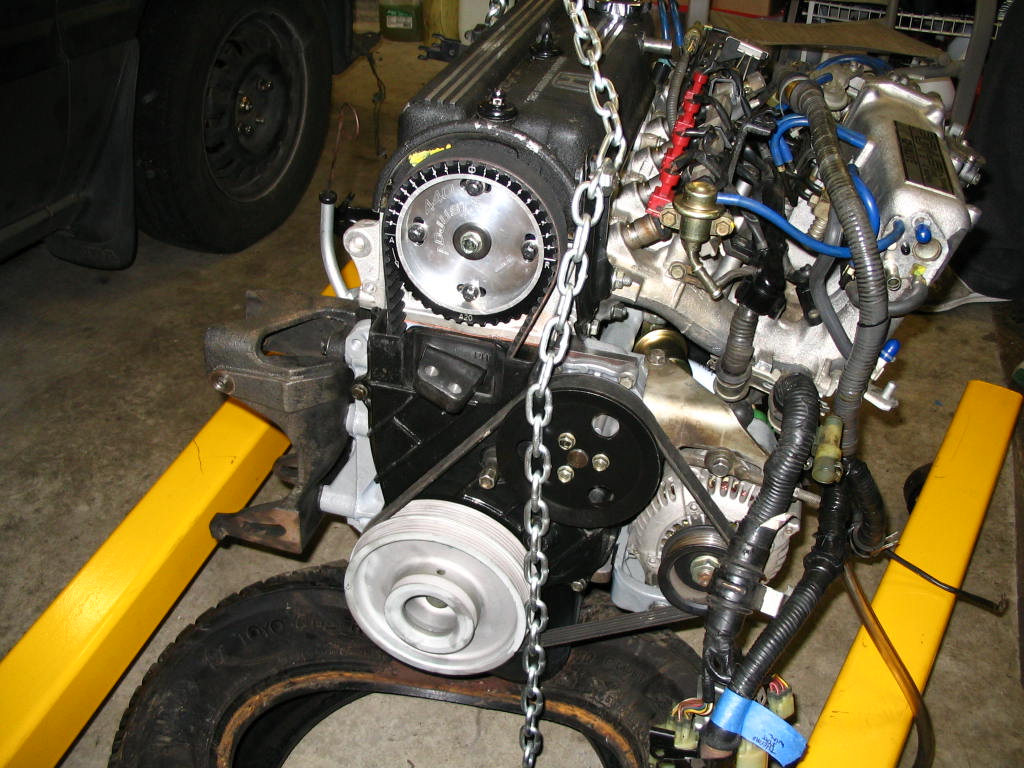

  • Golden Eagle 440 Adjust-tru adjustable cam gear

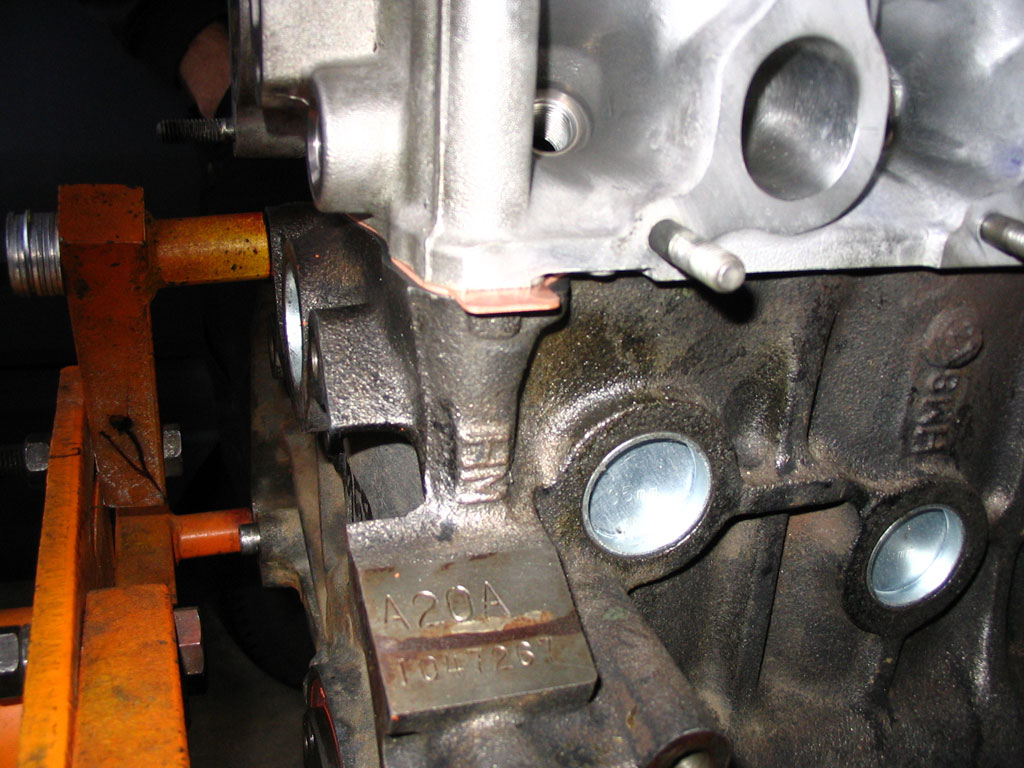

  • Cometic custom .050 thick copper head gasket
  • ARP head studs

OEM Motor parts:

  • None

Misc:

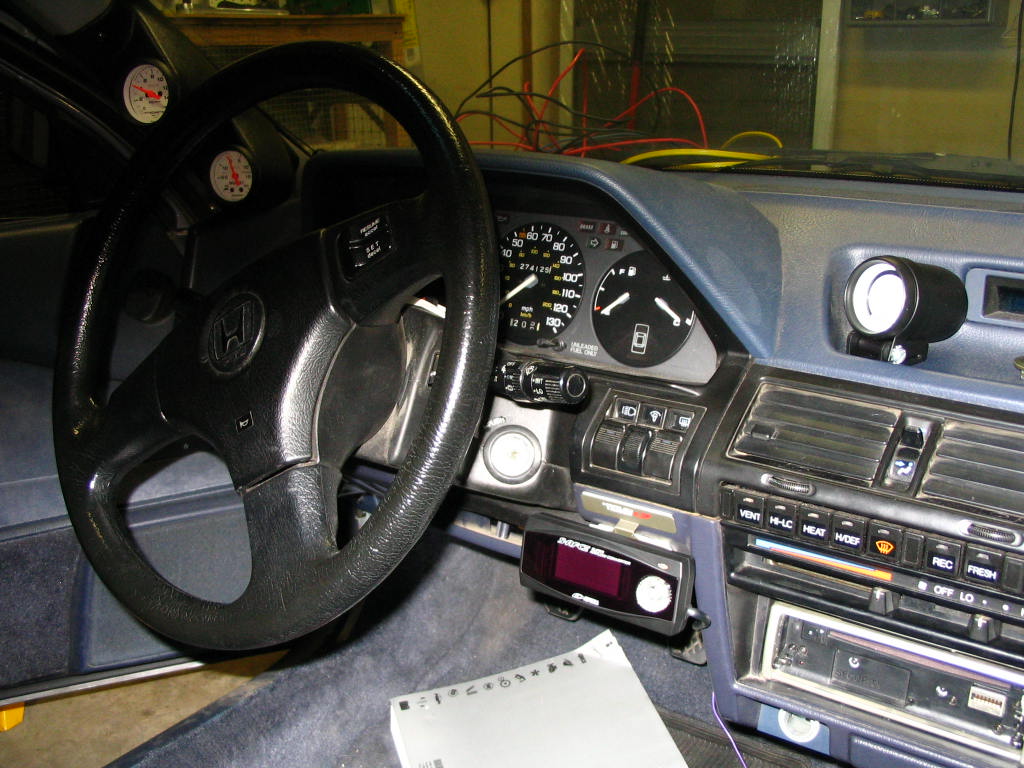

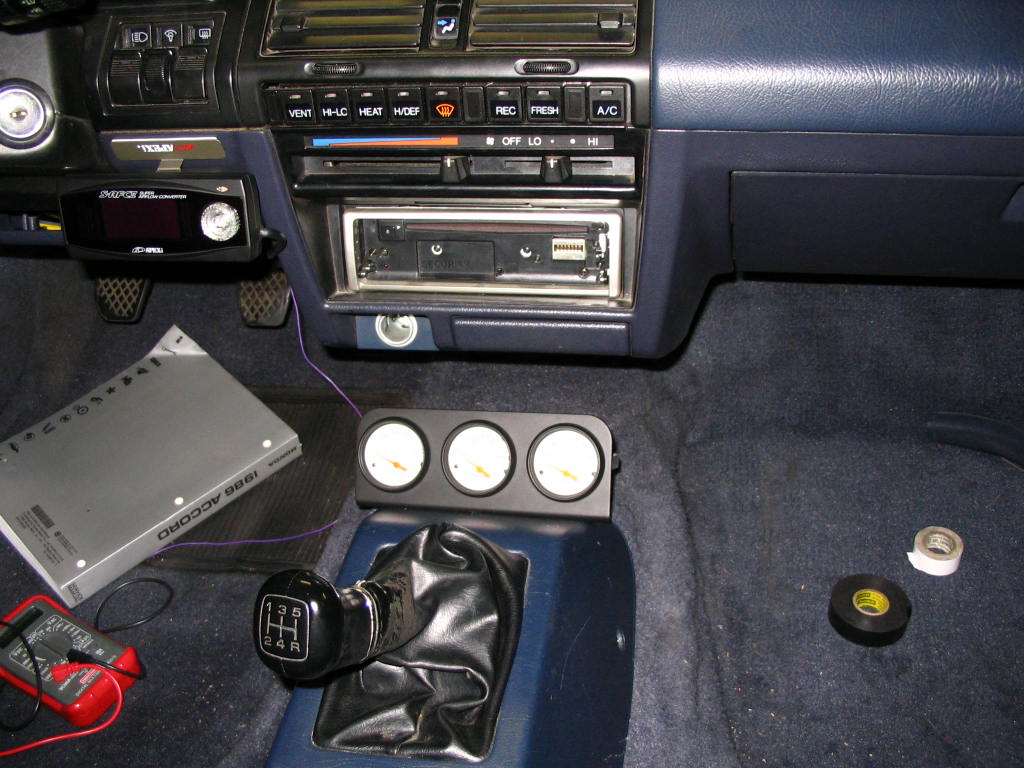

  • SAFC 2 Air fuel converter
  • AEM adjustable fuel pressure regulator

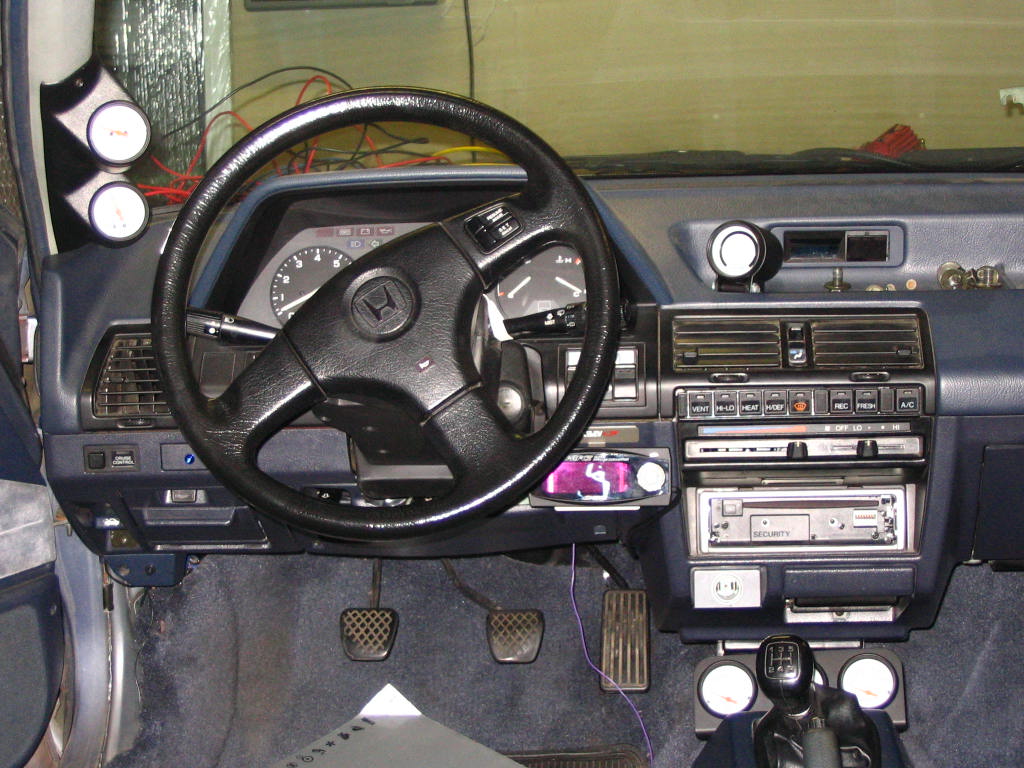

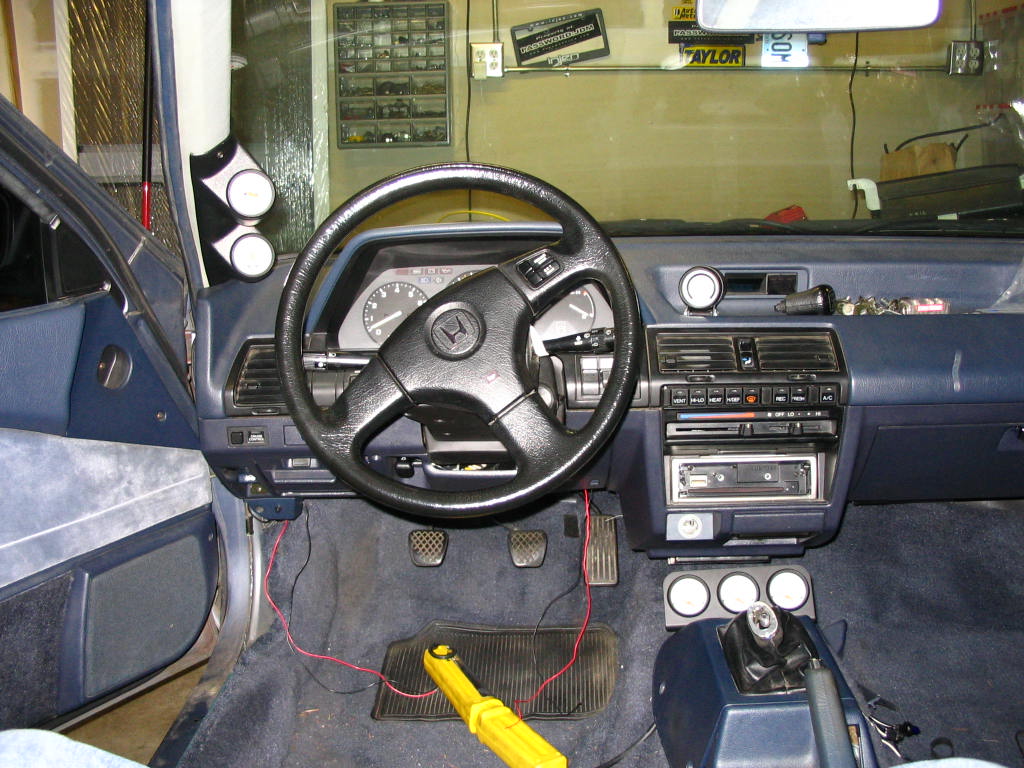

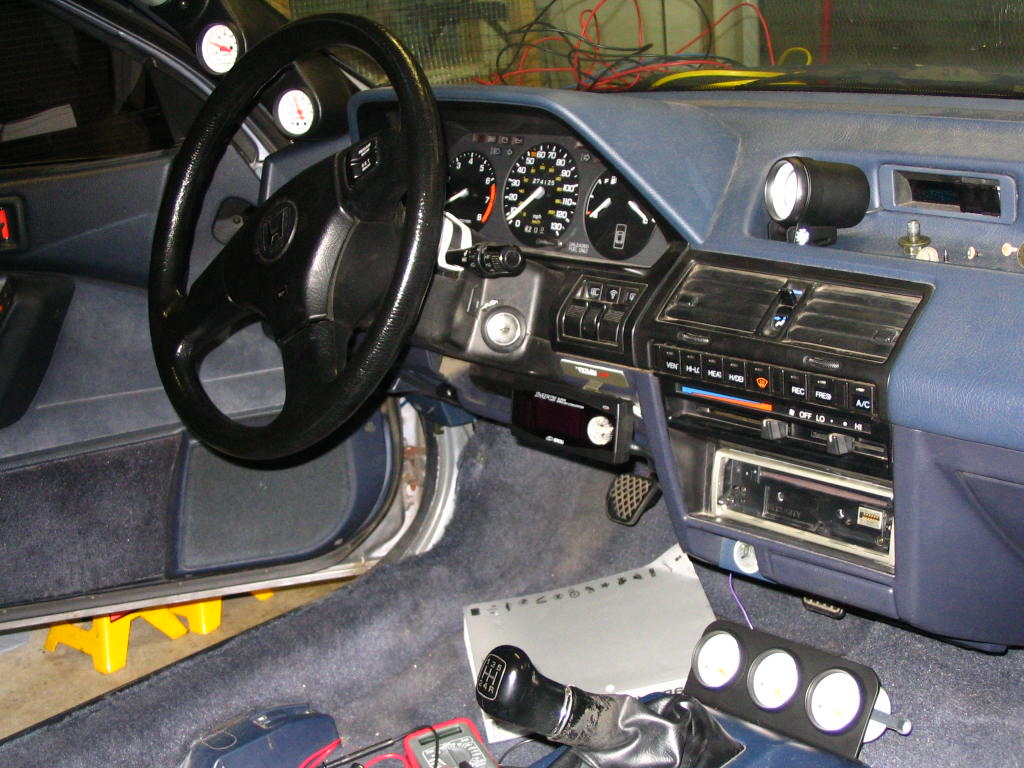

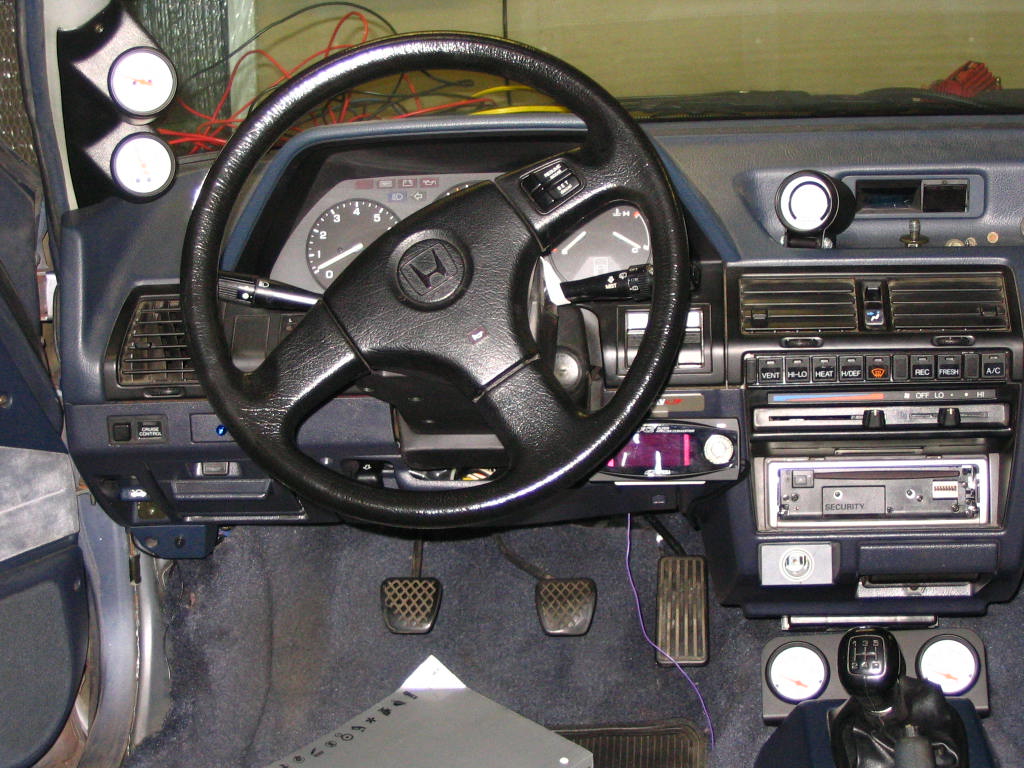

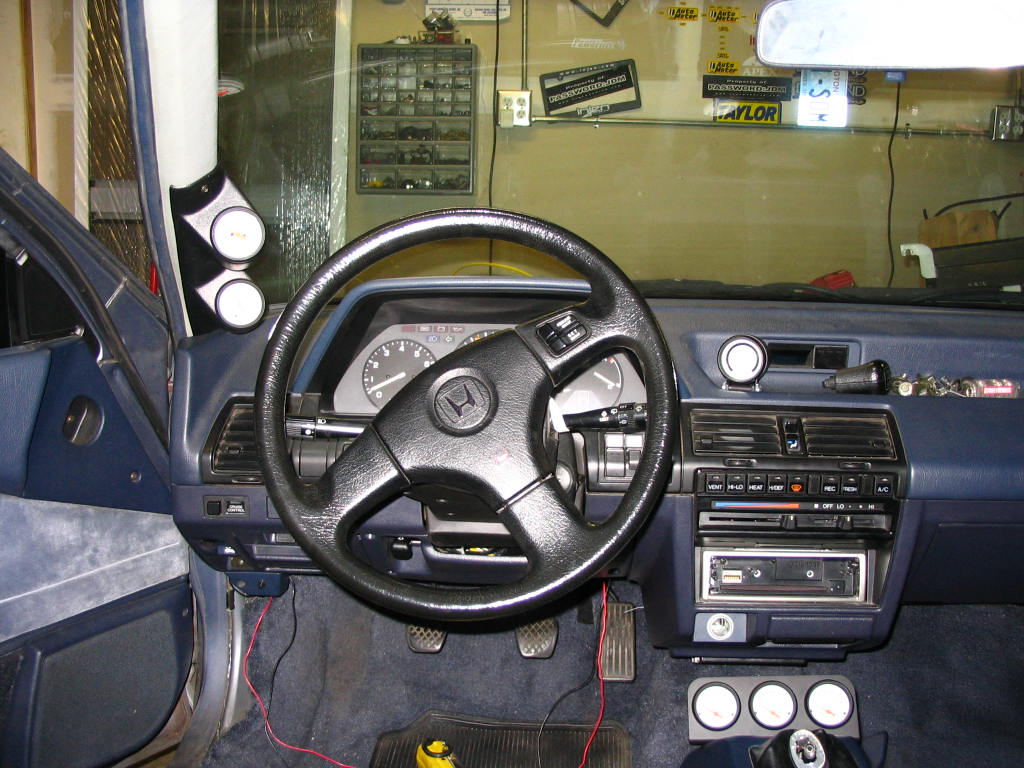

  • Autometer 2 1/16 Phantom - Voltage gauge (trust me, useful - I have weird electrical 'issues')
  • Autometer 2 1/16 Phantom - Water temp gauge

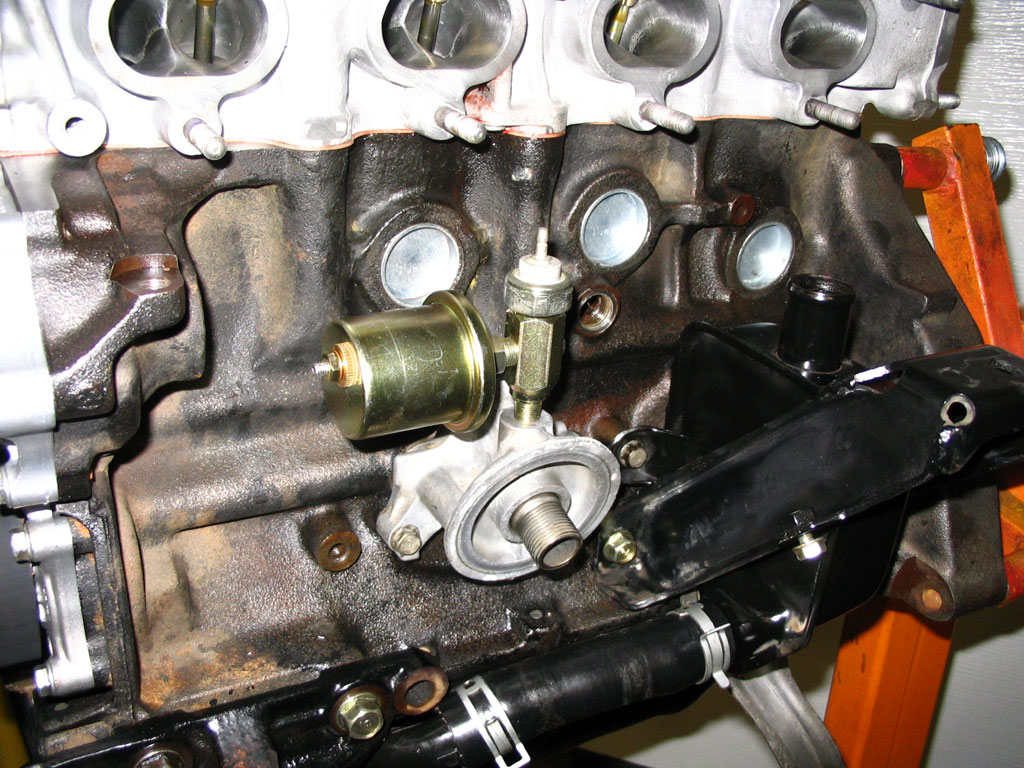

  • Autometer 2 1/16 Phantom - Oil Pressure gauge
  • Autometer 2 1/16 Phantom - A/F gauge (will be replaced with WBo2)
  • Autometer 2 1/16 Phantom - Boost / Vac gauge

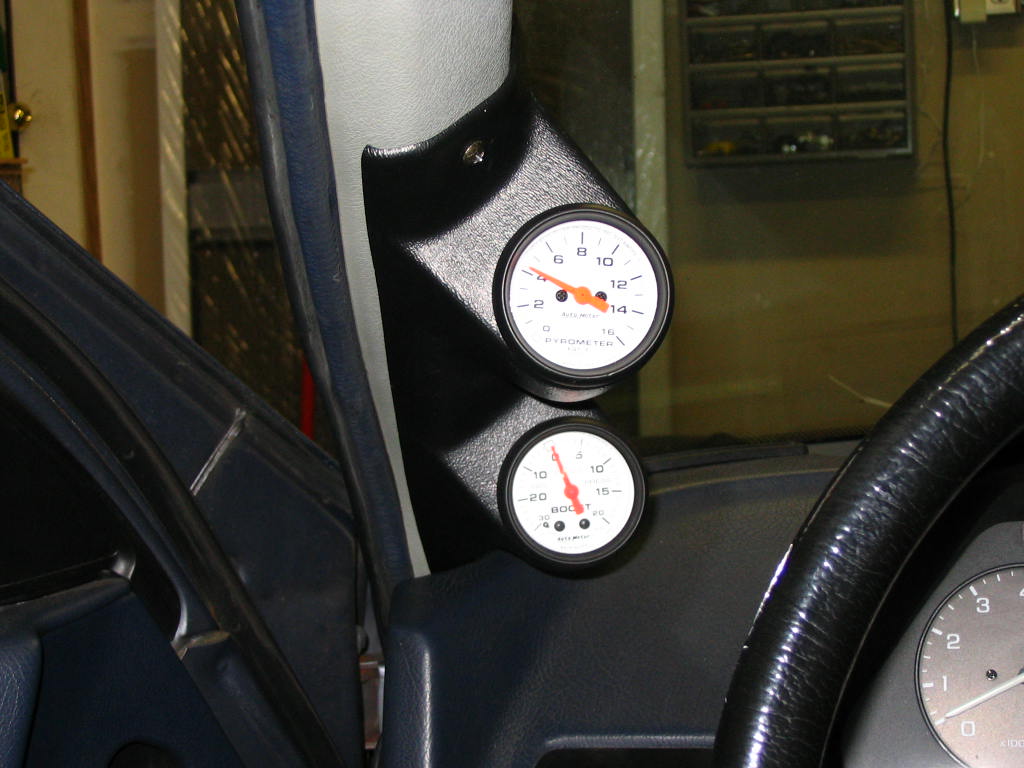

  • Autometer 2 1/16 Phantom - Pyrometer gauge

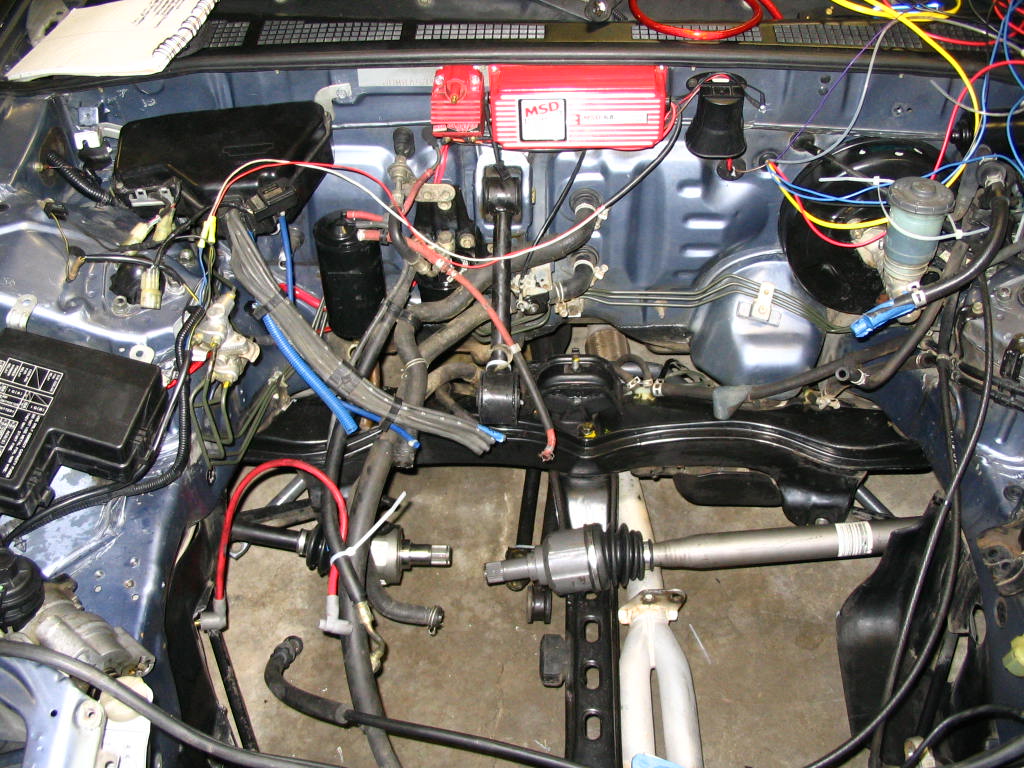

  • MSD 6A ignition
  • MSD 8.5mm plug wires
  • MSD Blaster SS coil
  • 4g Accord map sensor
  • Walbro 255 lph fuel pump

Turbo Parts: (italic lines are parts that still need to be aquired)

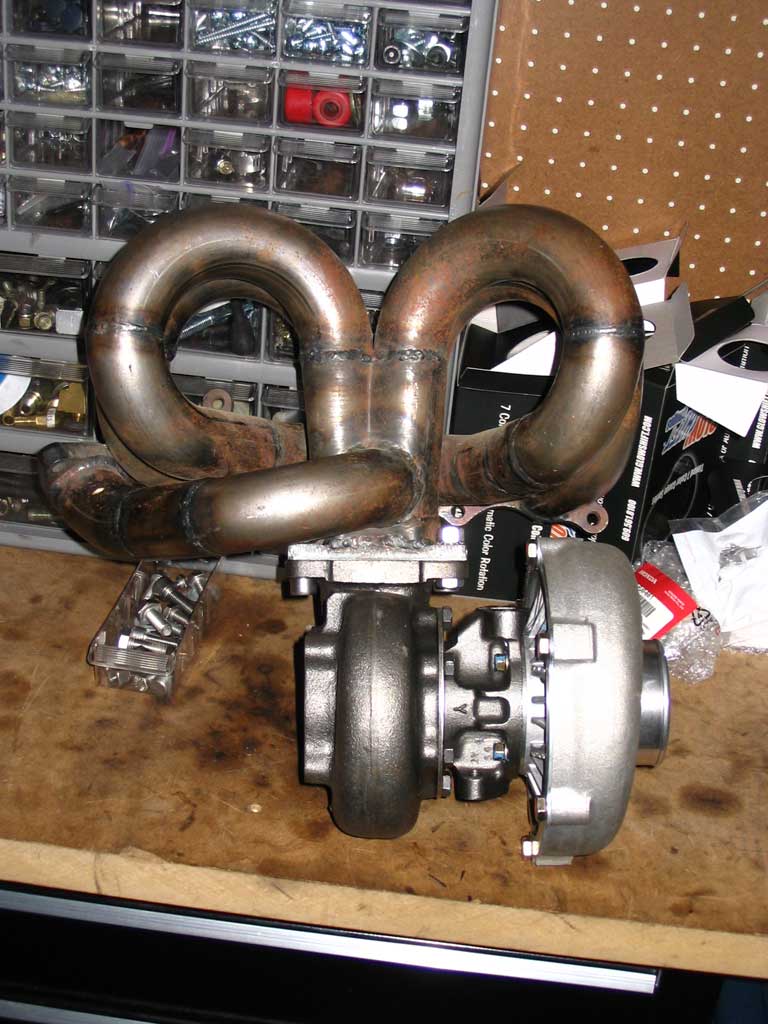

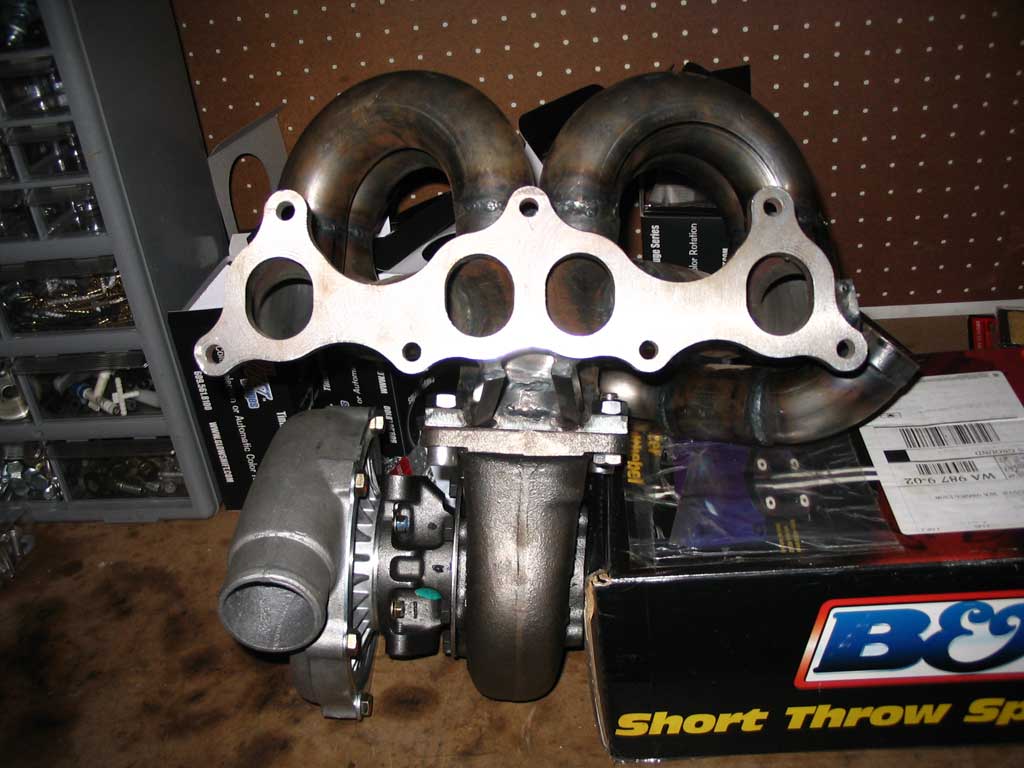

  • Garret T3/T4 57 trim, stage 3 wheel. .63 turbine, .60 compressor - brand new :-)

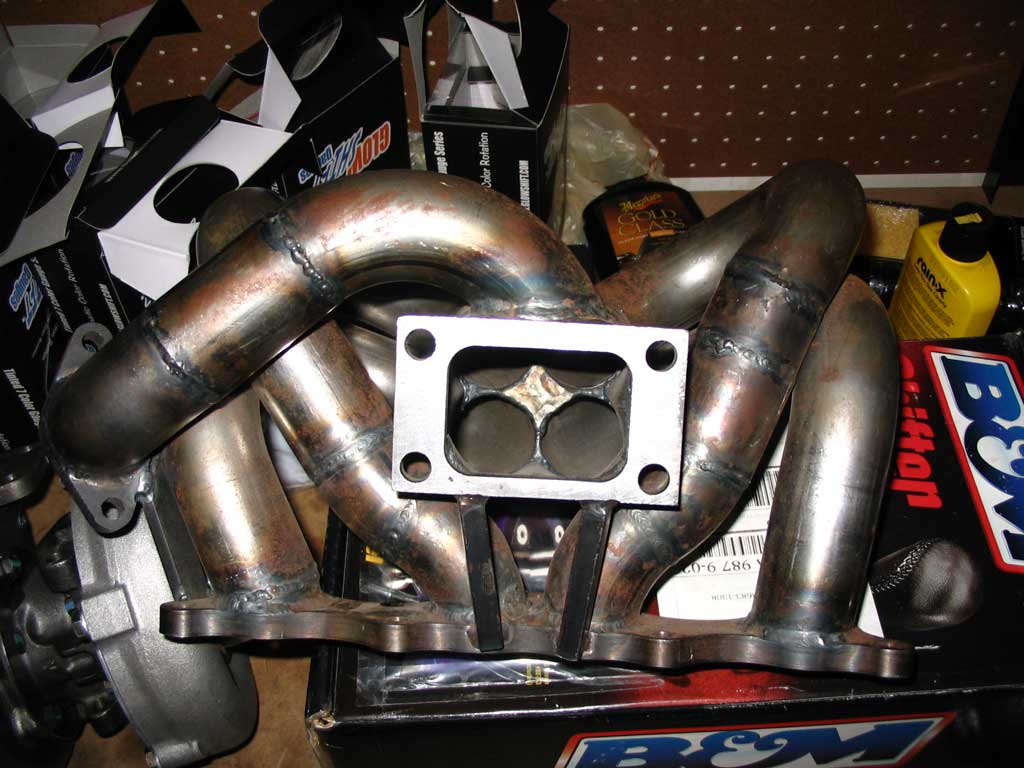

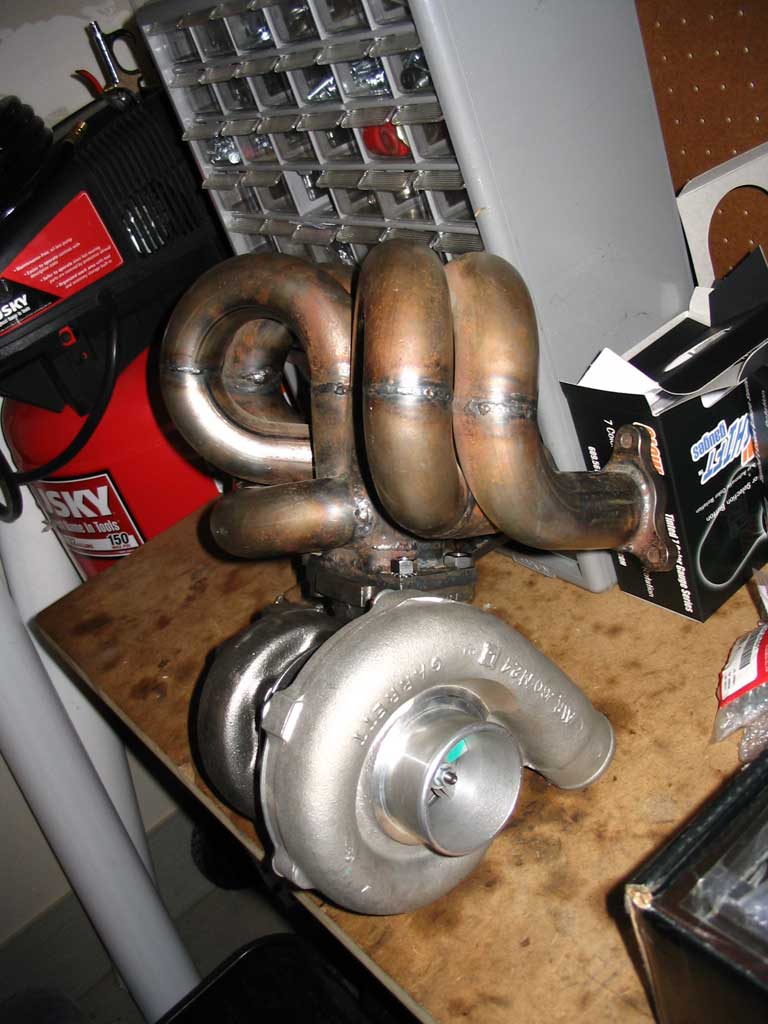

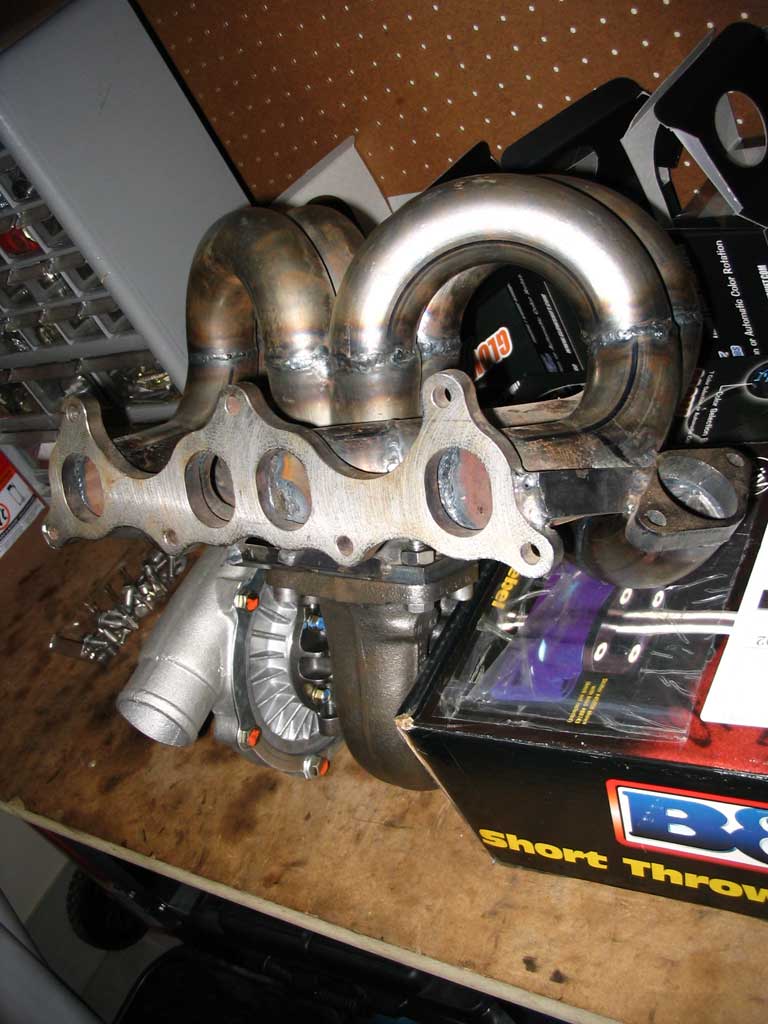

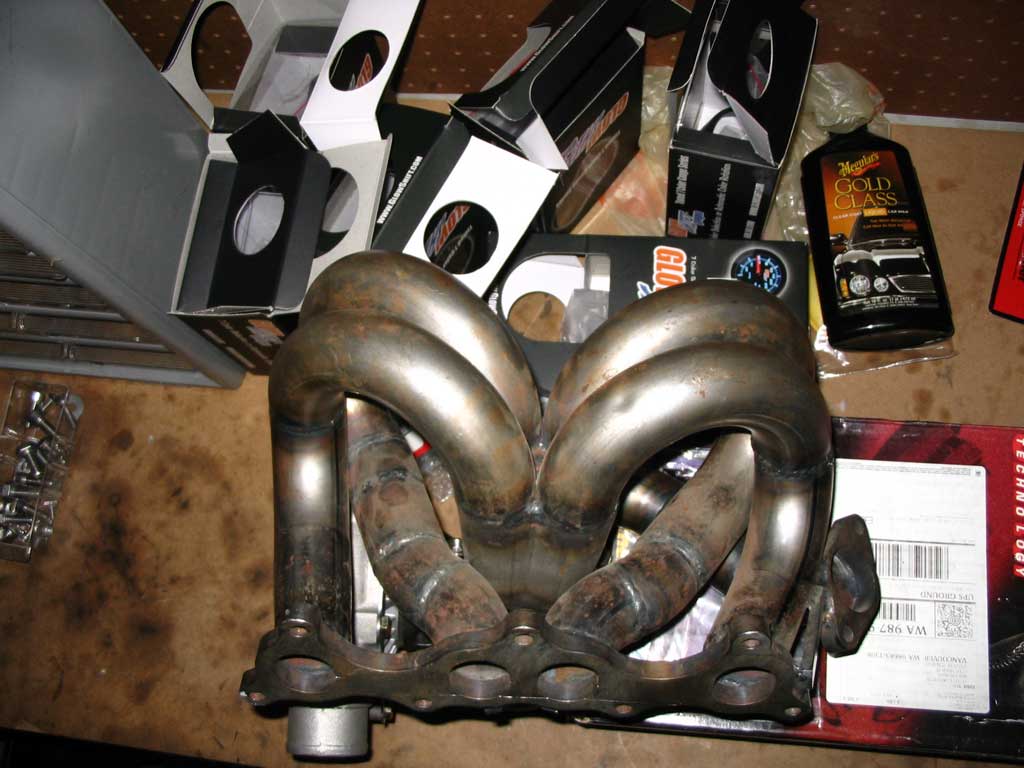

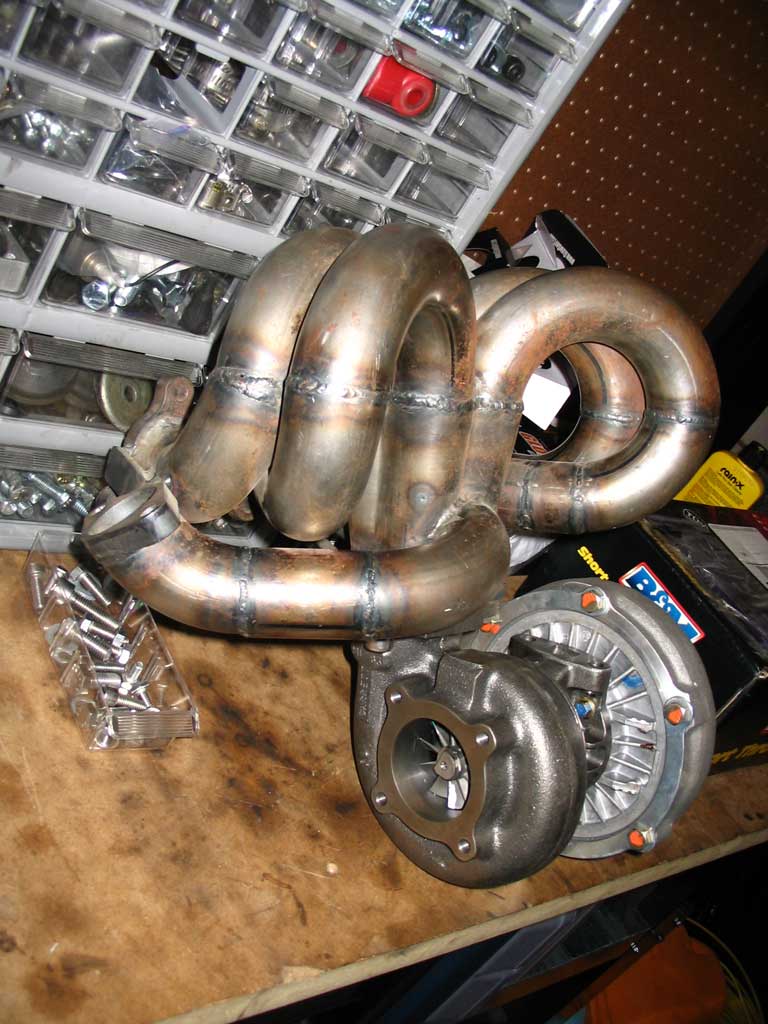

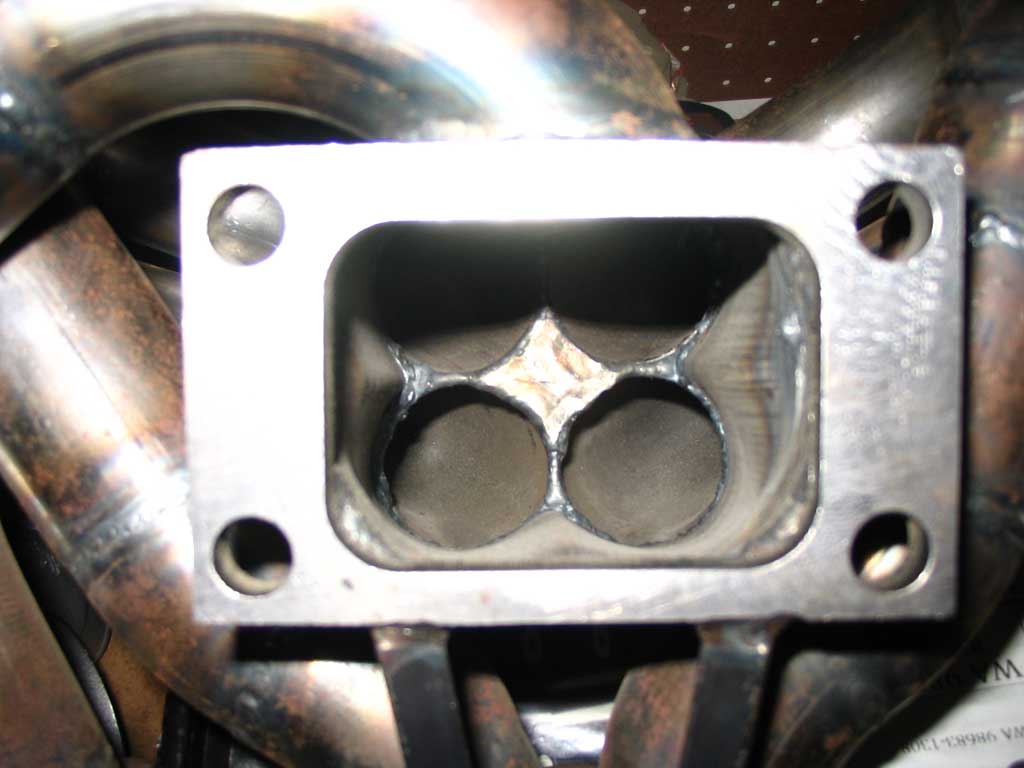

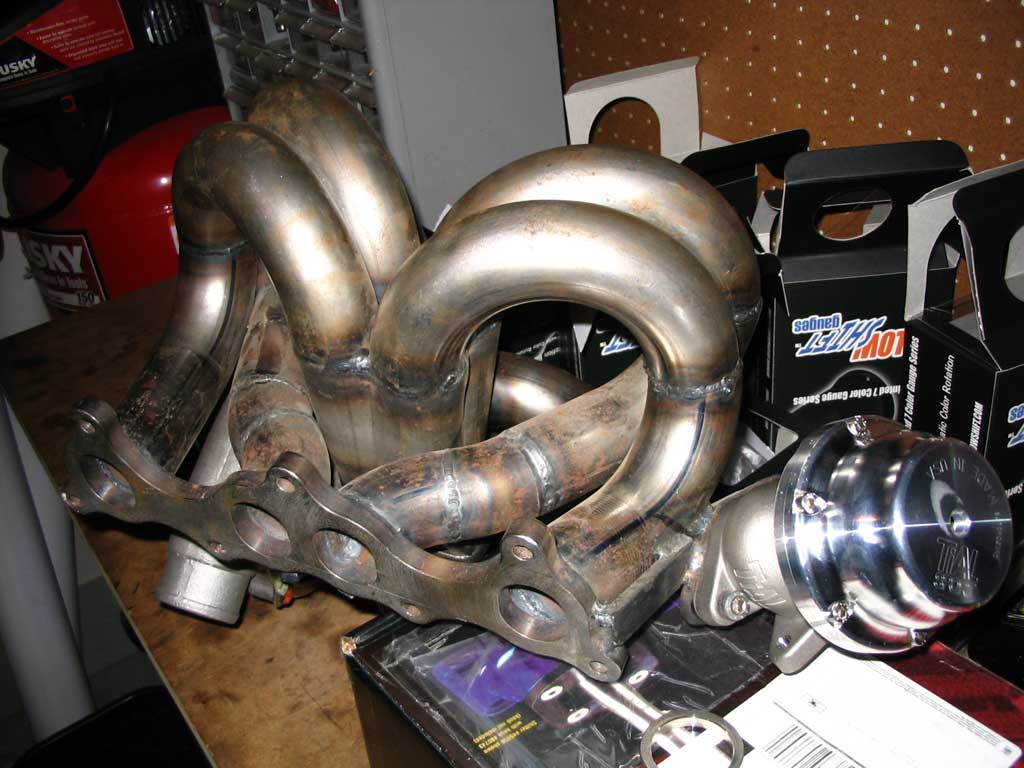

  • Custom Ram Horn Turbo Manifold
  • HKS SSQV BOV
  • Tial 38mm external wastegate
  • Stealthmode oil feed and return lines
  • 12x24x3 Bar and plate FMIC (will be replacing with a smaller 30x6x2.5 FMIC)
  • 3" downpipe
  • 3" mandrel bent exhaust
  • 2.5" charge pipes
  • Bigger injectors, 650's? 800's?
